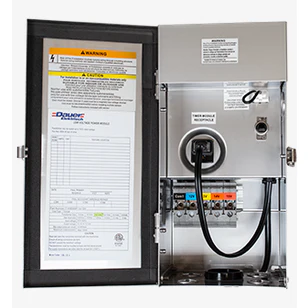

Dauer Manufacturing - 490541 - 150W Stainless Steel Small Box Transformer
Spec Sheet
Stainless steel professional small box low-voltage 150-watt transformer. Four taps on DIN rail for 12- to 15-volt output. One common tap. 92 to 95% regulation. Highly efficient. Photocell plug, amp loop, and timer socket. 12.5-amp breaker. Removable hinged door. Lifetime warranty.
Specifications:
- Output:
- Wattage: 150W
- Amps: 12.5A
- Taps for: 12V, 13V, 14V, 15V. One common tap
- Input:
- Voltage: 120V
- Hertz: 60HZ
- Amps: 1.25A
- Housing: Stainless steel housing and removable hinged swinging door with lockable latch. Pre-punched bottom and side panels.
- Agency Listing: ETL approved (5013561). Conforms to ANSI/UL 1838
- Warranty: Lifetime
- Model: T150EMSP
Features:
- DIN Rail
- Photocell receptacle
- Timer plug
- Primary amp loop
- 12.5A breaker
- Heavy-duty grounded 5-foot power cord
- Suitable for indoor and outdoor use
Dimensions:
- Height: 11.75"
- Width: 5.8"
- Depth: 5.5"
- Overall Height: 12.88"
