Grundfos Scala2 93013250 — Water Pressure Booster Pump

The Grundfos Scala2 93013250 combines pump, motor, sensor, controller, and tank into one compact, sealed system. With onboard intelligence and variable-speed control, it maintains constant pressure even when demand shifts — all with ultra-quiet operation and energy efficiency.

Key Features & Benefits

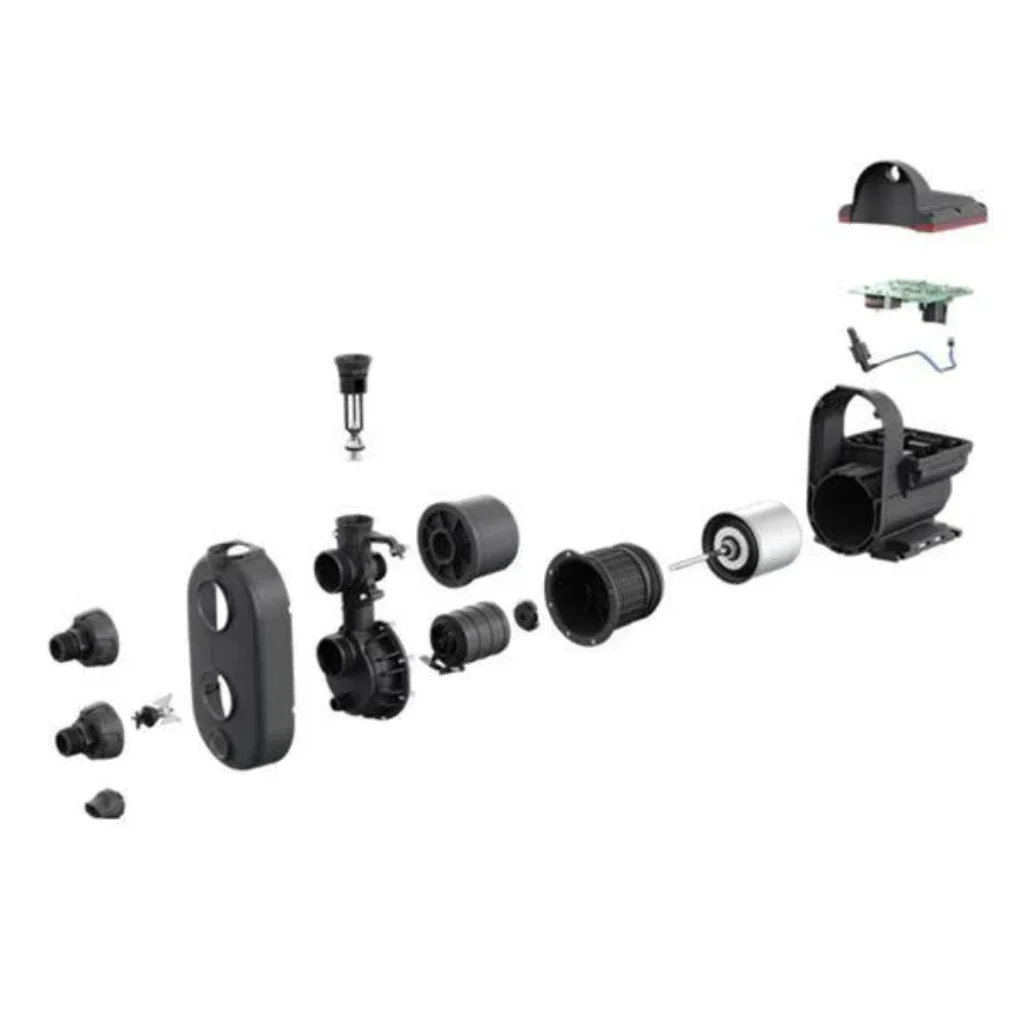

• Integrated all-in-one system — pump, motor, controller, sensor & tank in a compact form
• Variable-speed motor maintains constant pressure regardless of flow rate
• Quiet operation — typically < 57 dB
• Built-in diagnostics & protection for dry run, power surges, and lock-up
• IP6X sealed enclosure — no exposed electronics
• Easy to install — minimal external components or piping changes
• Cord Length 6.56 ft

Applications

• Residential pressure boosting systems
• Upgrading weak municipal water pressure
• Small irrigation or sprinkler zones
• Tank-to-home water delivery systems

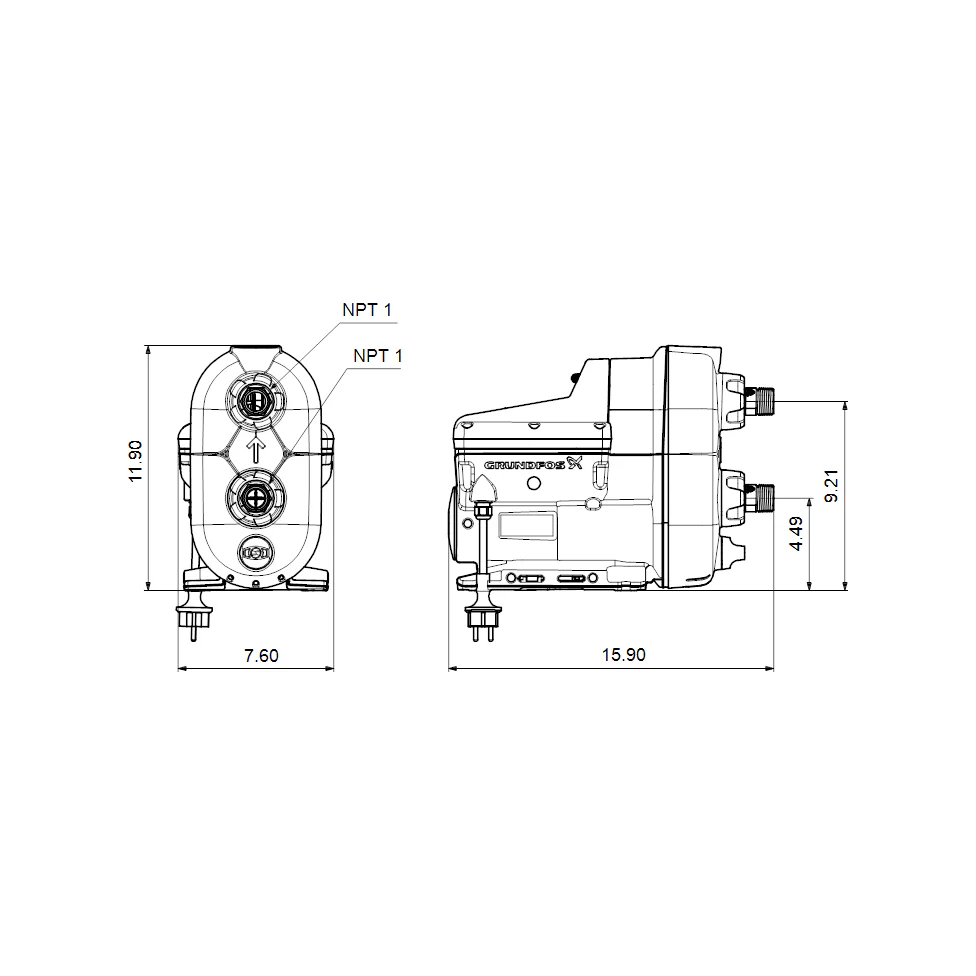

Specifications

Model / Variant	Scala2 93013250
Flow Range	3 – 45 GPM
Max Head	230 ft (70 m)
Motor Type	Brushless DC, variable-speed
Enclosure Rating	Fully sealed IP6X
Sound Level	< 57 dB
Control & Protection	Dry-run, overload, diagnostics



Common Questions

Q: How does the Scala2 maintain constant pressure?
A: It uses an integrated sensor and variable-speed motor to adjust output and maintain setpoint.

Q: What’s the maximum flow and head?
A: Up to 45 GPM and 230 ft head, depending on system conditions.

Q: Is it noisy?
A: No — standard operation is under 57 dB, making it quiet enough for most indoor installations.

Q: What protections are included?
A: Dry-run detection, overload protection, lock-up protection, motor diagnostics, and internal sealing.



The Scala2 93013250 offers a sleek, powerful, and intelligent booster pump experience — perfect when consistent pressure and compact design matter most.

This item replaces: 98562817
