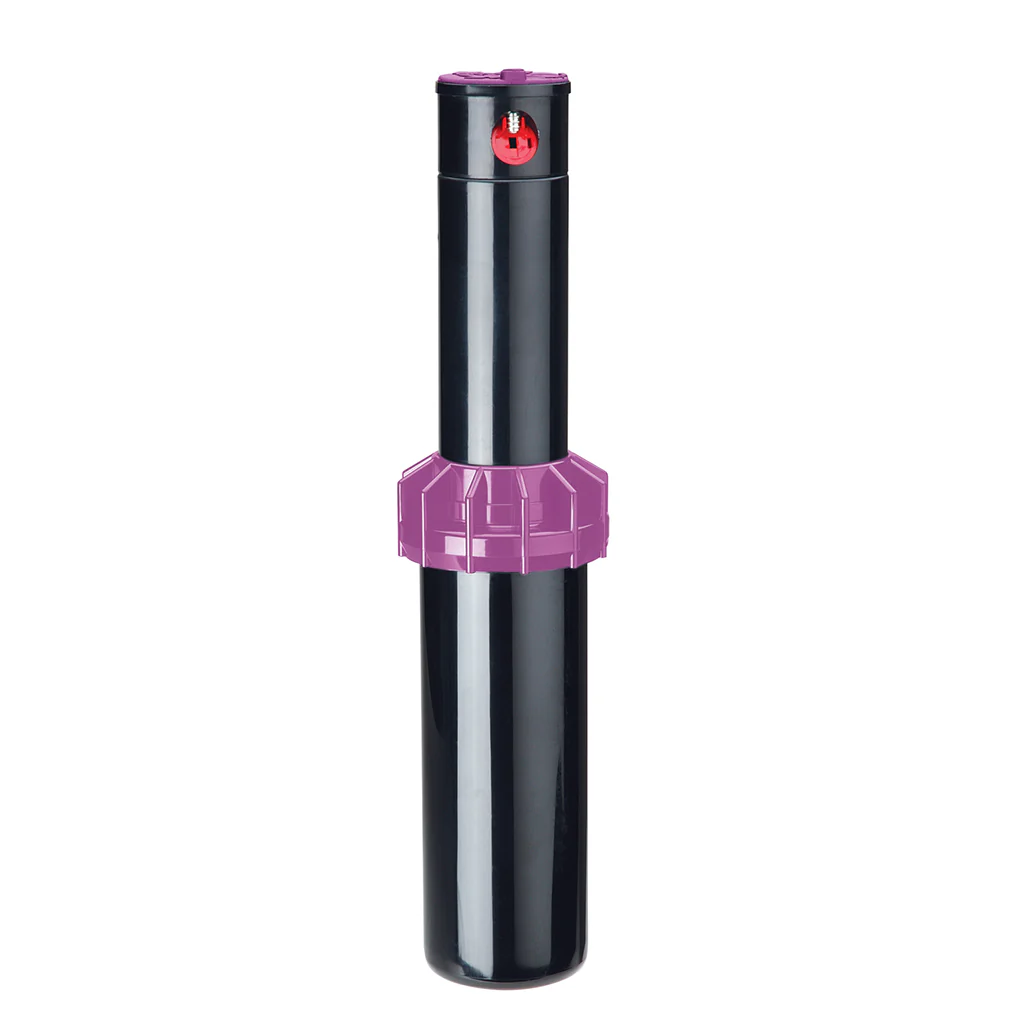

K-Rain - RPS75-RCW - Series 3/4" Rotor Purple Reclaimed Water
Spec Sheet Install Manual
K-Rain’s RPS® 75 gear drive rotor is designed for residential and light commercial applications. The reliable, durable design is the foundation of K-Rain’s RPS Rotor line. This workhorse is built to perform trouble-free for years and has unequalled value in the market. Our patented reversing mechanism, on which all rotors are based upon today, assures continuous reverse and return. With K-Rain’s wide selection of standard and low angle nozzles, the RPS 75™ provides even water distribution.
A direct replacement for the Hunter PGP® rotor, with our time-proven, patented reversing mechanism (the same used in the Hunter PGP®), the RPS75® drops directly in an installed Hunter PGP® can.
Worldwide regulations frequently require reclaimed water usage sites to use components identified with a purple cap or collar.
FEATURES AND BENEFITS:
- Direct Replacement for Hunter® PGP®.
- Right Position Start – Rotor rotates counterclockwise from fixed right start position.
- Riser Fits in Existing Hunter® PGP® cans – Simply unscrew the existing riser from the PGP® can and replace with the RPS® 75 riser.
- Top Adjustment – No training necessary – the RPS® 75 has the same adjustment procedure as the Hunter® PGP®.
- Full and Part Circle Rotation – Provides a full range of adjustment from 40° to 360°.
- Non-flushing Wiper Seal – Reduces leaks caused by debris trapped under seal.
- 3/4" (1,9 cm) Inlet – Replaces all standard rotors.
- Ideal for Low Flow Applications.
- Universal Adjustment Tool – Compatible with existing Hunter® products.
- Rubber Cover – Seals out dirt and increases durability.
- Wide Selection of Nozzles – Including standard and low angle, provides flexibility in system design.
- Five Year Limited Warranty
SPECIFICATIONS:
- Inlet: 3/4" (1,9 cm) Threaded NPT
- Arc Adjustment Range: 40° – 360°
- Flow Range: .75 – 8.2 GPM (2,6 – 32,6 LPM)
- Pressure Rating: 30 – 70 PSI (2,1 – 4,8 bars)
- Precipitation Rate: .16 – .70 in/hr (4 – 18 mm/hr) (Depending on Spacing and Nozzle Used)
- Overall Height (Popped Down): 7 3/8" (19,7 cm)
- Recommended Spacing: 25' – 45' (7,6 – 13,7 m)
- Radius: 22' – 51' (6,7 – 15,5 m)
- Nozzle Trajectory: 26°
- Low Angle Nozzle Trajectory: 11°
- 8 Standard and 4 Low Angle Nozzles Included
- Riser Height: 4" (10,2 cm)
