Spec Sheet

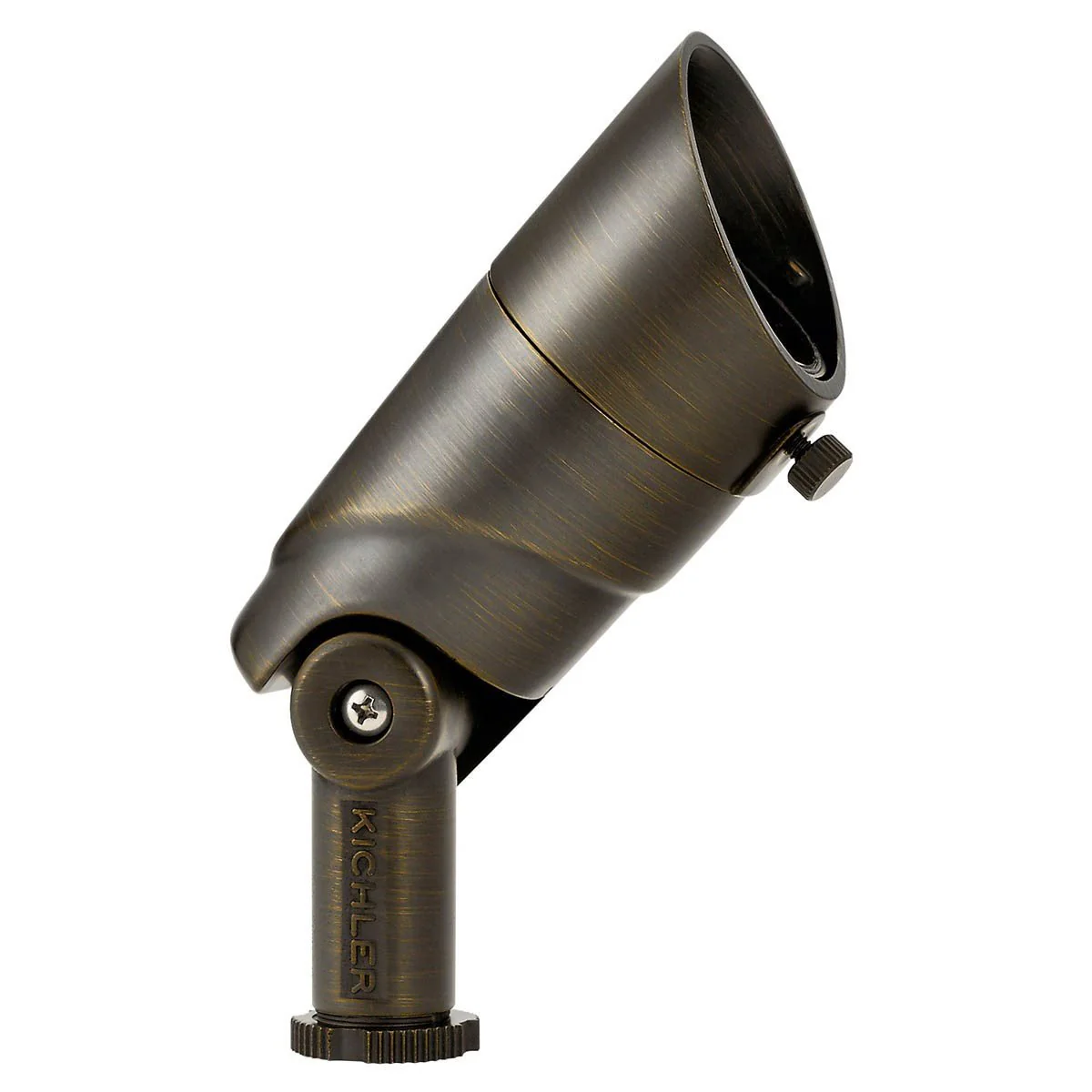

12V with Variable Lumen Output ( VLO ) that allows you to easily switch between three lumen outputs (100, 200, 300 lumens) without mechanically adjusting the settings on the fixture. The adjustable lumen small accent 35 degree, 3000K spot light in cast brass (CBR) is an integrated, fully sealed LED fixture that features 6,000 volt surge protection. Featuring custom optics that assures no halos or scallops to deliver superb center-to-edge uniformity for clean, clear light.

Certifications / Qualifications:

• Prop65: Yes

Dimensions:

• Height: 3.75"
• Length: 4.50"
• Overall Height: 48.00"
• Width: 2.00"

Electrical:

• Operating Voltage Range: 9-15 VAC
• Voltage: 12V

Housing:

• Primary Material: Brass
• Finish: Centennial Brass

Light Source:

• Delivered Lumens: 300
• Equivalent Light Source: Halogen
• Expected Life Span (Hours): 50000
• Lamp Included: Integrated
• Light Source: LED
• Max or Nominal Watt: 5.50W
• # of Bulbs/LED Modules: 1
• Volt-Amperes (VA): 7.50VA

Mounting/Installation:

• Location Rating: Wet
• Wire Connectors: Wire Nuts

Photometrics:

• Beam Angle Options: 35.00
• Color Rendering Index: 80
• Delivered Efficacy (Lumens/Watt): 55
• Kelvin Temperature: 3000K
