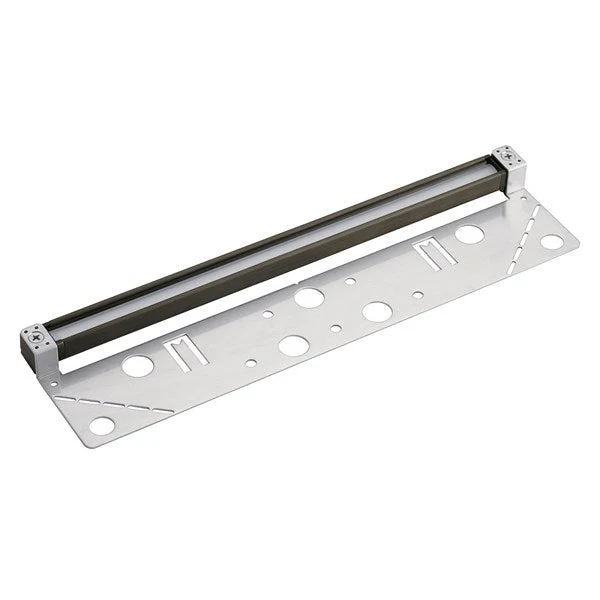

Kichler - 16102CBR30 - 12V LED 12" Hardscape
Spec Sheet Install Manual
The 12V LED Hardscape light is an integrated, fully sealed LED fixture with a 270° pivot rotation from a mounting bracket which allows you to place the light precisely where it's needed. The 12"" length option fits most design applications with a 3000K color temperature in a Centennial Brass (CBR) finish. Custom optics ensure smooth, uniform light distribution virtually eliminating any hotspots or glare. Integrated with a 4kV surge protection to defend against power surges and irregularities.
Mounting/Installation
- Location Rating: Wet
- Wire Connectors: Wire Nuts
Dimensions
- Base Backplate: 12" X 3" X 0.75"
- Height: 0.75"
- Length: 12.00"
- Width: 3.00"
Light Source
- Delivered Lumens: 85
- Expected Life Span (Hours): 40000
- Lamp Included: Integrated
- Max or Nominal Watt: 1.90
- # of Bulbs/LED Modules: 1
- Volt-Amperes (VA): 2.80
Product/Ordering Information
- SKU: 16102CBR30
- Finish: Centennial Brass
- UPC: 783927533720
Photometrics
- Color Rendering Index: 80
- Kelvin Temperature: 3000 K
- Delivered Efficacy (Lumens/Watt): 45
Electrical
- Operating Voltage Range: 9-15 VAC
- Voltage: 12 V
Housing
- Primary Material: Brass
Certifications/Qualifications
- Prop65: Yes
