Kichler - 16157CBR27 - 2700K 500 Lumen 35 Degree Flood
Spec Sheet Install Manual

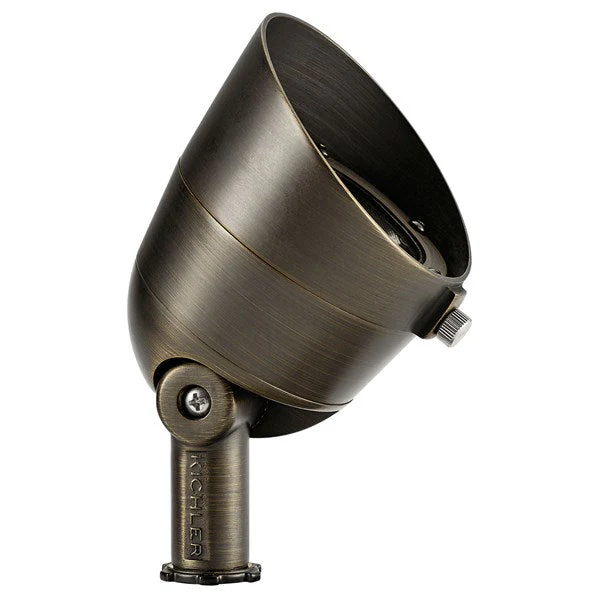

12V accent 35 degree, 500 lumen, 2700K flood light in cast brass (CBR) is an integrated, fully sealed LED fixture that features 4,000 volt surge protection. Featuring custom optics that assures no halos or scallops to deliver superb center-to-edge uniformity for clean, clear light.
Mounting/Installation
- Location Rating: Wet
- Wire Connectors: Wire Nuts
Dimensions
- Height: 4.50"
- Length: 3.50"
- Width: 3.25"
Light Source
- Delivered Lumens: 500
- Expected Life Span (Hours): 40000
- Lamp Included: Integrated
- Max or Nominal Watt: 7.00
- # of Bulbs/LED Modules: 6
- Volt-Amperes (VA): 10.00
Product/Ordering Information
- SKU: 16157CBR27
- Finish: Centennial Brass
- UPC: 783927546195
Photometrics
- Color Rendering Index: 80
- Kelvin Temperature: 2700 K
- Beam Angle Options: 35.00
- Delivered Efficacy (Lumens/Watt): 71
Electrical
- Operating Voltage Range: 9-15 VAC
- Voltage: 12 V
Housing
- Primary Material: Brass
Certifications/Qualifications
- Prop65: Yes
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Kichler - 16157CBR27 - 2700K 500 Lumen 35 Degree Flood
Kichler - 16157CBR27 - 2700K 500 Lumen 35 Degree Flood
Spec Sheet Install Manual
12V accent 35 degree, 500 lumen, 2700K flood light in cast brass (CBR) is an integrated, fully sealed LED fixture that features 4,000 volt surge protection. Featuring custom optics that assures no halos or scallops to deliver superb center-to-edge uniformity for clean, clear light.
Mounting/Installation
- Location Rating: Wet
- Wire Connectors: Wire Nuts
Dimensions
- Height: 4.50"
- Length: 3.50"
- Width: 3.25"
Light Source
- Delivered Lumens: 500
- Expected Life Span (Hours): 40000
- Lamp Included: Integrated
- Max or Nominal Watt: 7.00
- # of Bulbs/LED Modules: 6
- Volt-Amperes (VA): 10.00
Product/Ordering Information
- SKU: 16157CBR27
- Finish: Centennial Brass
- UPC: 783927546195
Photometrics
- Color Rendering Index: 80
- Kelvin Temperature: 2700 K
- Beam Angle Options: 35.00
- Delivered Efficacy (Lumens/Watt): 71
Electrical
- Operating Voltage Range: 9-15 VAC
- Voltage: 12 V
Housing
- Primary Material: Brass
Certifications/Qualifications
- Prop65: Yes
