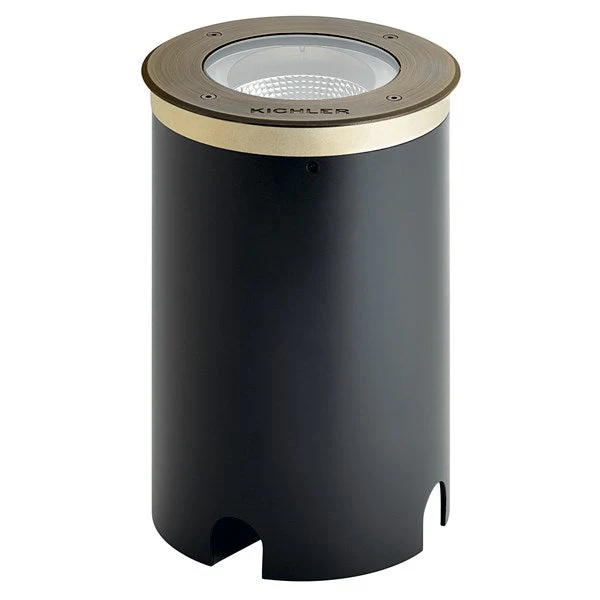

Kichler - 16258CBR30 - C-Series 20W 60 Degree 3000K In-Ground
Spec Sheet Install Manual
This durable 60 degree 1625LM 3000K In-Ground well light features the ability to adjust the direction of the light from outside the fixture - leaving the factory seal intact. Featuring a cast brass housing that sits within a heavy-duty polymetric sleeve, it also offers silicone rubber gaskets at the lens, a potted driver, and a strain relief below, all designed to prevent water ingression. Finish is Centennial Brass; Stainless Steel Trim Ring accessory is also available.
Mounting/Installation
- Location Rating: Wet
Dimensions
- Height: 10.25"
- Length: 10.25"
- Width: 6.25"
Light Source
- Lamp Included: Integrated
- Light Source: LED
- Max or Nominal Watt: 20.00
- # of Bulbs/LED Modules: 1
Product/Ordering Information
- SKU: 16258CBR30
- Finish: Centennial Brass
- UPC: 783927554831
Photometrics
- Kelvin Temperature: 3000 K
- Beam Angle Options: 60.00
Electrical
- Voltage: 120-277 V
Housing
- Primary Material: Brass
Certifications/Qualifications
- Prop65: Yes
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Kichler - 16258CBR30 - C-Series 20W 60 Degree 3000K In-Ground
Kichler - 16258CBR30 - C-Series 20W 60 Degree 3000K In-Ground
Spec Sheet Install Manual
This durable 60 degree 1625LM 3000K In-Ground well light features the ability to adjust the direction of the light from outside the fixture - leaving the factory seal intact. Featuring a cast brass housing that sits within a heavy-duty polymetric sleeve, it also offers silicone rubber gaskets at the lens, a potted driver, and a strain relief below, all designed to prevent water ingression. Finish is Centennial Brass; Stainless Steel Trim Ring accessory is also available.
Mounting/Installation
- Location Rating: Wet
Dimensions
- Height: 10.25"
- Length: 10.25"
- Width: 6.25"
Light Source
- Lamp Included: Integrated
- Light Source: LED
- Max or Nominal Watt: 20.00
- # of Bulbs/LED Modules: 1
Product/Ordering Information
- SKU: 16258CBR30
- Finish: Centennial Brass
- UPC: 783927554831
Photometrics
- Kelvin Temperature: 3000 K
- Beam Angle Options: 60.00
Electrical
- Voltage: 120-277 V
Housing
- Primary Material: Brass
Certifications/Qualifications
- Prop65: Yes
