Liberty P382LE41/A2 Pro380-Series Simplex Sewage Pump System- 24" x 24" - 4/10HP With Alarm
Liberty P382LE41/A2: The Pre-Assembled 4/10 HP Sewage System

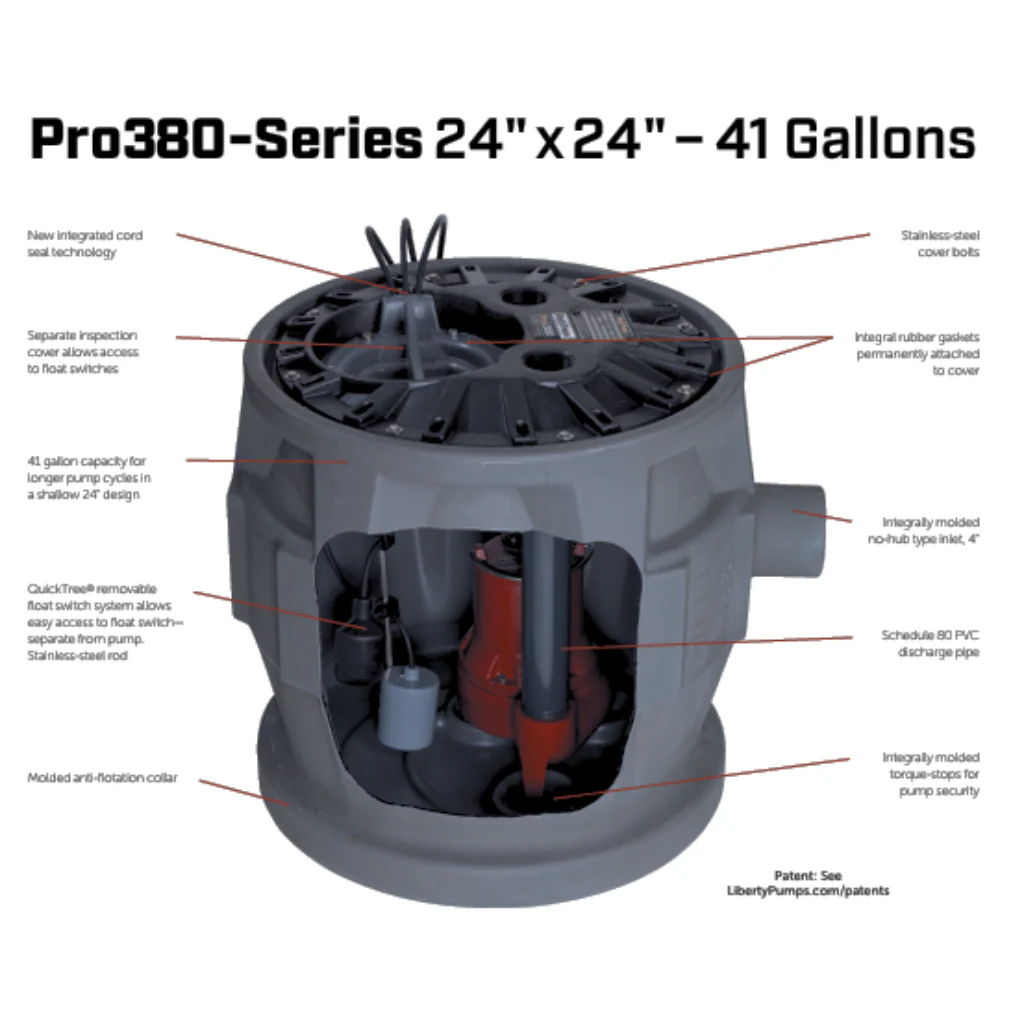

The Liberty Pumps P382LE41 / A2 is a premium submersible sewage pump system built for reliability and ease of installation. Featuring a rugged electric water pump with a cast iron housing, a 41-gallon basin, and the QuickTree® float system, this package provides complete turnkey protection for residential sewage and wastewater applications. Ideal for basements, crawlspaces, and below-grade plumbing where efficient pumping is required.
Top Features & Benefits
- Package — arrives almost ready to install, remove the shipping material, saving field labor and reducing complexity.
- Compact / Shallow Design — 24" x 24" basin is ideal for challenging soil or bedrock conditions.
- 41 Gallon Capacity Basins — larger volume that extends pump cycles and improves performance.
- QuickTree® Float System — float switches are removable without disturbing the pump or plumbing.
- Anti-Float Collar & Torque Stops — resist buoyancy and maintain pump stability under varying conditions.
- Heavy-Duty Pump Motor — 4/10 HP LE41A pump, 100 GPM at 10 ft head; 140 GPM max at 20 ft shut-off.
- Rugged Construction — cast-iron pump housing, vortex impeller for solids handling (2" passage), schedule-80 PVC discharge.
Specifications
| Model | P382LE41 / A2 |
| Pump Type | LE41A 4/10 HP, 115 VAC, Single Phase |
| Performance | 100 GPM @ 10 ft head; shut-off approx. 20 ft; max 140 GPM |
| Discharge Size | 2" NPT vertical female |
| Solids Handling | 2" (vortex impeller) |
| Basin Size | 24" × 24" (shallow) with 41-gal capacity |
| Inlet | 4" no-hub (molded) |
| Construction | Polyethylene basin, cast-iron pump, PVC/discharge hardware |
| Float System | QuickTree® removable floats |
| Warranty | 3 years (standard) |
Applications & Use Cases
- Residential sewage pumping (basements, crawlspaces, below-grade plumbing)
- Sites with limited vertical depth or difficult soil — shallow basin fits easier.
- Situations where pump removal or servicing without disrupting plumbing is desired.
- Low-maintenance installations — float removal does not require pulling out pump.
Installation Notes & Considerations
- Ensure access cover clearance; seal wiring and piping properly to prevent infiltration.
- Check local sewer code compliance for materials, venting, and discharge rules.
- Inspect float switches periodically; QuickTree simplifies access without disturbing plumbing.
- Use non-corrosive, durable piping (schedule-80 or equivalent) for discharge connections.
Optional Access Riser:
ARC18
