Stiebel Eltron 233219 Details

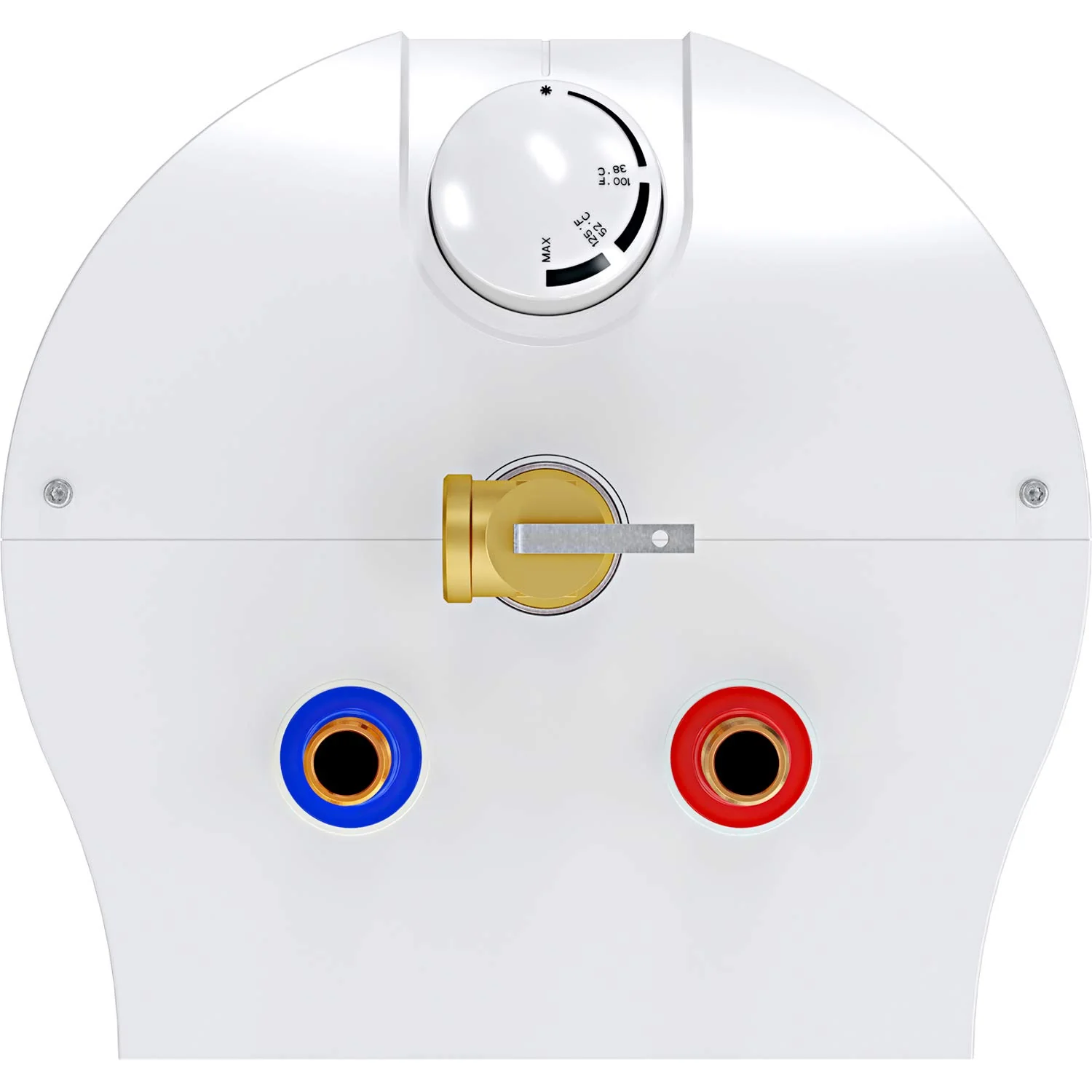

If you're storing 30+ gallons of hot water in a traditional water heater when your application requires much less than that, the Stiebel Eltron 233219 SHC 2.5 mini tank water heater provides you with a convenient, efficient alternative! Designed for installation at the point of use to provide hot water for hand washing or kitchen type applications either as a stand-alone hot water source or as a booster for a remote central tank, this 2.65 gallon tank mounts to a wall with the included bracket and simply plugs into the wall--no special hardwiring required. By using a smaller tank directly at the point-of-use, you not only save water by reducing long pipe runs from a central hot water tank, but also save energy by reducing standby heat loss associated with larger tanks! This glass-lined tank comes with a T&P valve for your convenience. The Stiebel Eltron 233219 SHC 2.5 multiple point-of-use water heater features a compact, lightweight construction with a sleek design that makes it easy to install almost anywhere!

Overall Dimensions:
Left to Right: 11"
Front to Back: 10 5/8"
Height: 18 11/16"

STIEBEL ELTRON 233219 SPECS
Width	11 Inches
Depth	10 5/8 Inches
Height	18 11/16 Inches
Amps	11.3 Amps
Hertz	60 Hertz
Phase	1
Voltage	120
Wattage	1.3 Kilowatts
Maximum Temperature	140 Degrees F
Power Type	Electric
Style	With Tank
Tank Capacity	2.65 gal.
Type	Water Heaters
Usage	Single Point of Use
