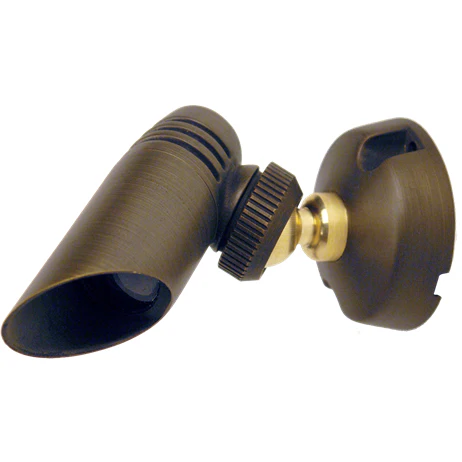

Unique Lighting Systems - NSOS-NL - North Star-OSM Odyssey Series No Lamp
Spec Sheet
The North Star is ideal when up-lighting is challenged by a small installation area. Featuring a fully adjustable shroud, the Northstar is enhanced by a revolutionary ball and joint swivel mount allowing a 360° rotation, thus giving 100% accuracy when dialing in the proper lighting angle.
NTHSTAROSM BR NL 25'WL WB
| Body | Precision machined from solid brass casting. Body design provides enclosed, water resistant wire way to protect wires. |
| Gasket | High-temperature silicone o-ring for a water-tight seal. |
| Knuckle | Machined brass, exclusive ball and joint. The 360° Orbital Mount™ allows for perfect directional fine tuning. |
| Shroud | Precision machined from brass. Accepts up to one additional lens/hex cell accessory. |
| Lens | Comes with a complete set of optical designer lenses including; spread lens, frosted, hex cell and blue lens for moonlighting effect. |
| Lamp | For use with a FLEX GOLD™ Series MR11 2W LED lamp or a halogen lamp up to 20W. |
| Electrical Requirements | A remote 12V transformer is required and may be ordered separately from Unique Lighting Systems®. Voltage range for 12V halogen lamps is 10.8V to 12V. |
| Lamp Connection | Specification grade, beryllium copper lamp holder. GU5.3 base. |
| Wiring | Exclusive UF Intelli-Flex wire with anti-moisture migration connections. |
| Hardware | Cast brass dome mount included. |
| Warranty | The Odyssey Family of products from Unique Lighting Systems® carries a Limited Lifetime Warranty against manufacturer’s defects. |
| Manufacturing | Manufactured to ISO 9001-2008 Quality Systems |
Specifications:
- Solid cast brass construction
- High temperature silicone o-rings
- Specification grade, beryllium copper socket
- Premium grade direct burial cable
- AMC - Anti-Moisture Connections
- Revolutionary ball and joint Orbital Mount allowing a 360° rotation
- Complete lens set included
- 2W max. LED lamp / 20W max. halogen
- Brass Stratosphere mounting bracket
- Weathered brass finish standard
- Limited lifetime warranty
Dimensions:
- Length: 4.6"
- Width: 1.6"
Over the years, a select few products have risen above the rest with their unparalleled performance. We're thrilled to share these gems with you. Whenever you spot the "From the Frog" badge, rest assured it's more than just a mark of quality—it's a symbol of our dedication and careful consideration in choosing the best for you.
