Unique Lighting Systems - PHOT-NL - Photon flat shroud® Elements Series No Lamp
Spec Sheet

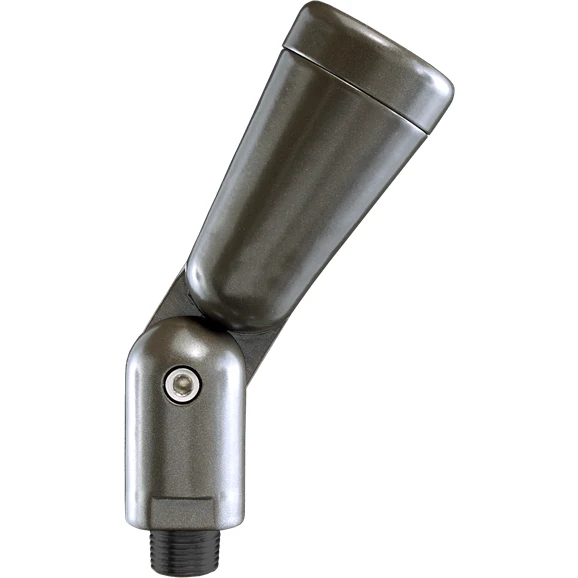

The Photon® fixture is designed to illuminate shrubs, trees, signage, architectural facades and more. Features include, Marine grade A360 alloy construction, Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion, 15’ hub-ready wire lead, 1' FLEX GOLD™ Auxiliary Lead, Composite stake with molded brass threaded insert. Available in shrouded and non- shrouded version. Dual silicone o-ring seal. Accepts Unique’s FLEX GOLD™ Series LED MR11 lamps or halogen lamps. Pre-Lamped now available!
| Body | Precision machined from Marine grade A360 alloy. Body design provides enclosed, water resistant wire way to protect wires. Features an integral knuckle for maximum mechanical strength. |
| Gasket | Two high-temperature silicone o-ring for the water-tight seal. |
| Knuckle | Machined knuckle with a solid stainless steel Allen bolt. Vertical tilt for easy aiming. |
| Shroud | Precision machined and comes with a factory sealed shock resistant glass lens to prevent water intrusion. Accepts up to one additional lens/hex cell accessory. |
| Finish | Proprietary E-Shield™ process provides 5 distinct layers of protection against corrosion. |
| Lens | Flat clear tempered glass. Patented removable lens. The full gasket lens is held in place with a threaded lens retainer. |
| Lamp | For use with FLEX GOLD™ Series LED lamps available in 2W MR11 LED lamps are available in 2700K color temperature. Halogen lamp up to a 20W MR11 lamp. |
Specifications:
- Marine grade A360 alloy construction
- High temperature silicone o-rings
- 1’ FLEX™ Auxiliary wire lead
- 15’ direct burial cable
- AMC - Anti-Moisture Connections
- Available in shrouded and non-shrouded version
- 2W max. LED lamp / 20W max. halogen
- Bronze finish
- E-Shield™ coating process
- Composite stake with brass threaded insert
- Limited 10 year warranty
