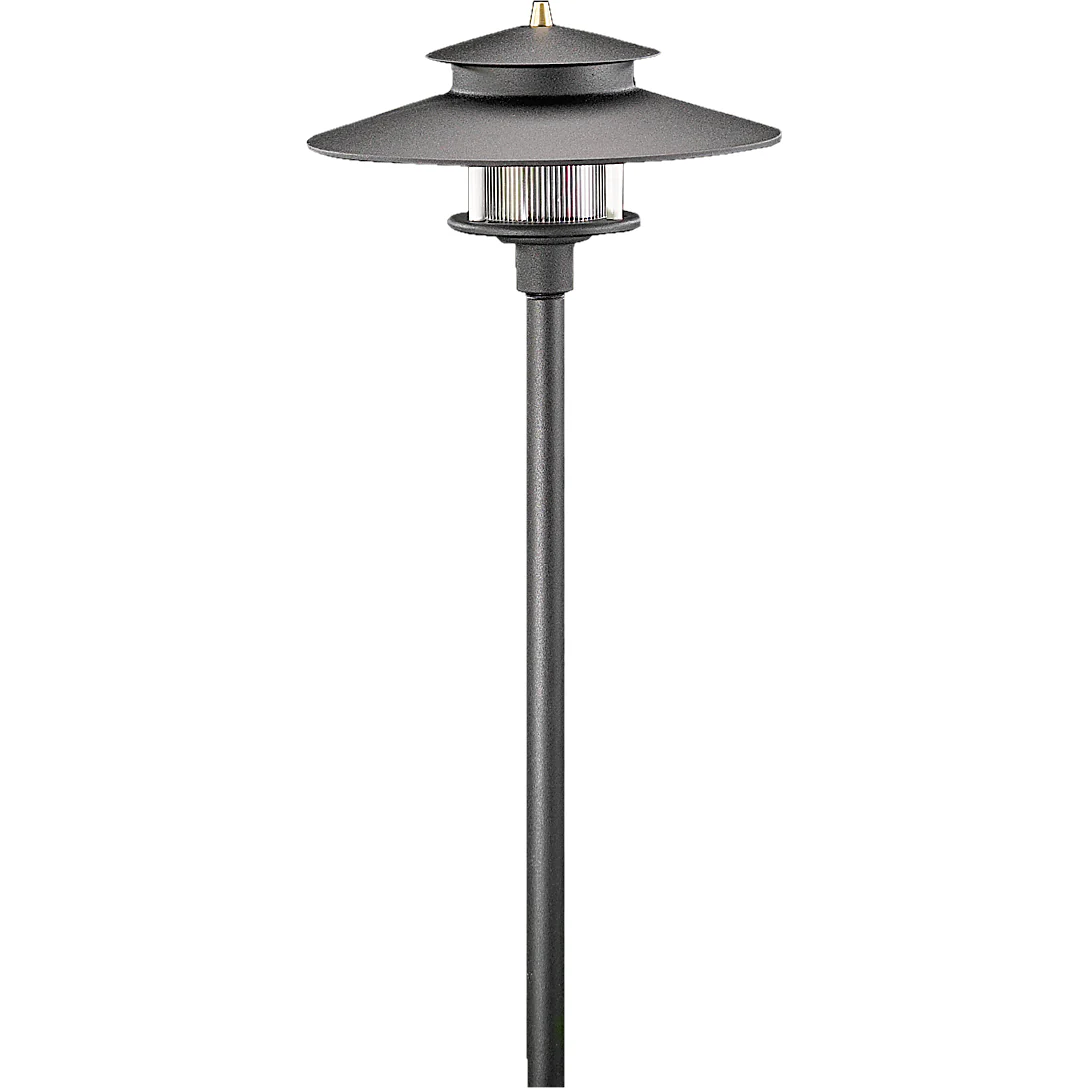

Vista Outdoor Lighting - PR-9207-B-150-W-G4 - tall 2 Tier Pagoda Light, Black, Warm
Spec Sheet Install Manual
Designed with a classic style, this low voltage path light fixture is constructed of die-cast copper-free aluminum for strength and reliability. The stem is a ½” schedule-40 aluminum pipe with a ½” NPT.
A super durable polyester powder-coated finish is applied and available in Black. A prismatic, high impact, polycarbonate lens safeguards the lamp and optics. The 9207 is shipped with a 2.5 Watt LED lamp, unless otherwise specified. ABS ground stake mounting hardware is included.
FIXTURE FEATURES:
- HOUSING: Die-cast, copper-free aluminum
- STEM: ½” schedule-40 aluminum pipe with ½” NPT.
- FINISH: Polyester powder-coat finish available in Black.
- LENS: Clear, prismatic, high-impact, polycarbonate spread lens.
- LAMP TYPE: High Output LED with Vista exclusive smart-driver, powered to operate for 50,000 hours.
- ELECTRICAL: Input voltage range 6–15V AC, regulated to achieve uniform illumination throughout the cable run of fixtures. Integral surge & reverse polarity protection.
- MOUNTING: Bottom of stem threaded with ½” NPT. Fixture may be mounted into threaded hubs in junction boxes, ground stakes, or floor-mounting canopies.
- FASTENERS: All fasteners are stainless steel.
- WIRING: Prewired with a three-foot pigtail of 18-2 direct-burial cable & underground connectors for a secure connection to supply cable.
- T3, LED
- 20W
- Aluminum
Dimensions:
- Overall Height: 25.5"
- Head Height: 6.5"
- Width: 10.25"
