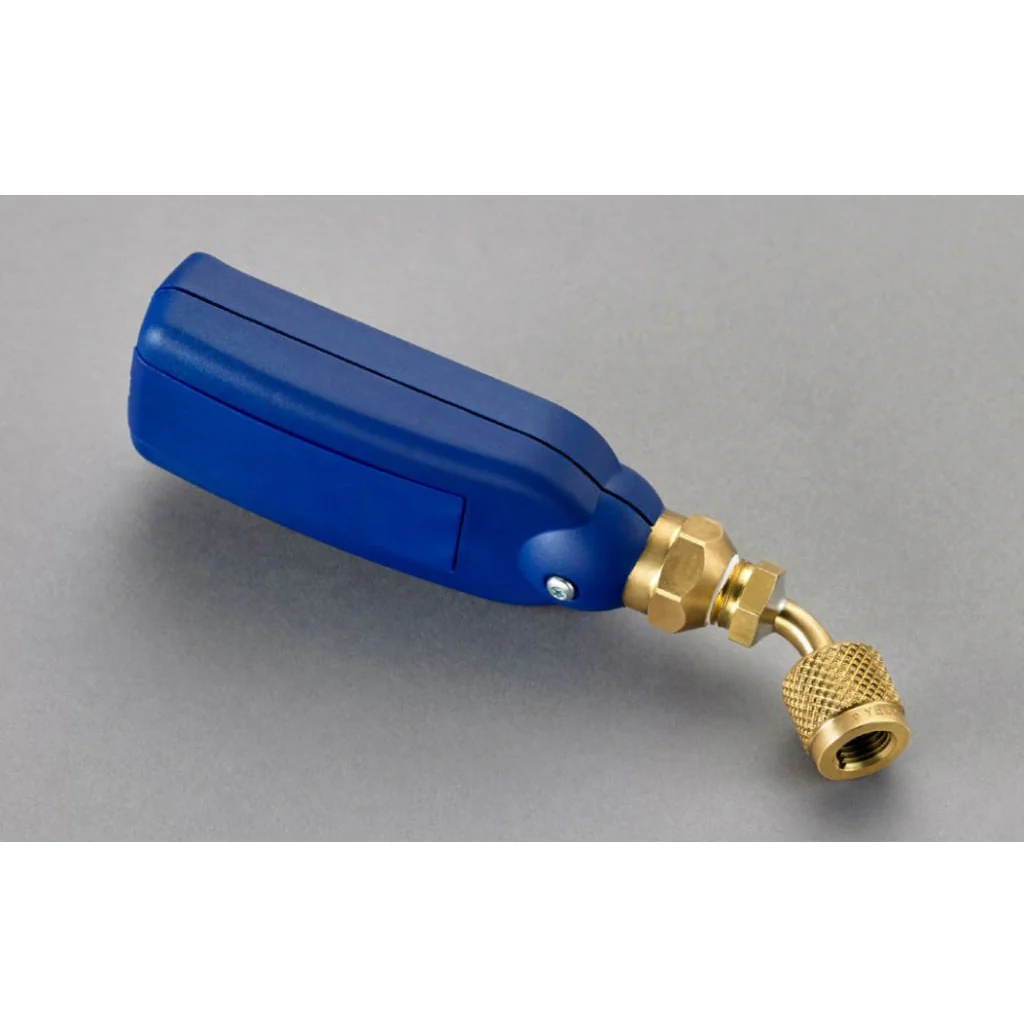

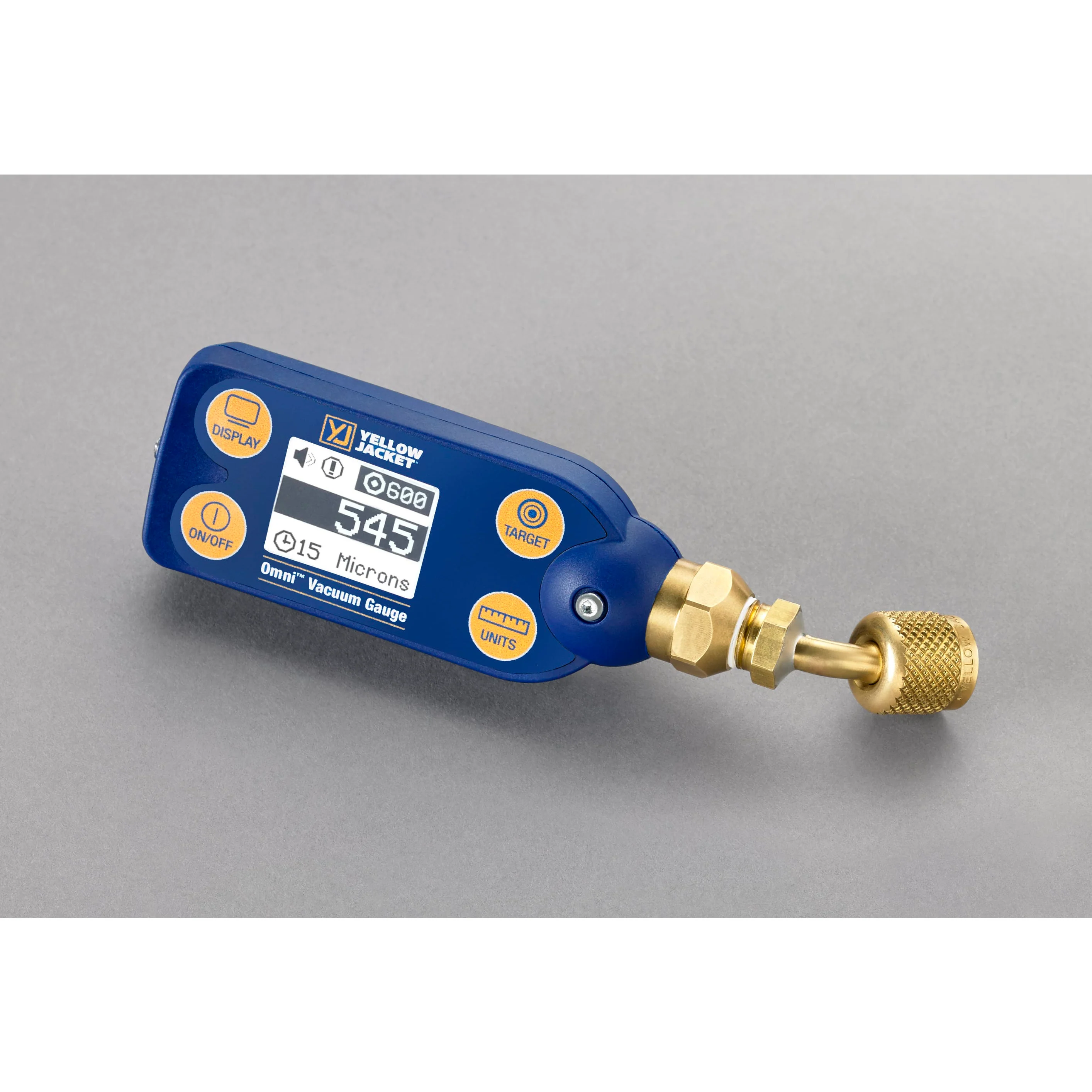

Yellow Jacket - YJ69020 Omni Digital Vacuum Gauge with 1/4" Coupler (69020)
Spec Sheet Install Manual
The YELLOW JACKET® OMNI™ Digital Vacuum Gauge is an easy-to-use, compact vacuum gauge that is loaded with features for the price. And it’s rugged, too. With a high impact housing, it survives moisture and accidental drops or attachment to a high pressure line. The easy-to-clean vacuum sensor handles 450 psi positive pressure and reads several units of vacuum (microns, millibar, Torr and Pascal).
- Audio and visual signal when target vacuum level is reached
- Electronic paper display for clear visibility - even in direct sunlight
- Rich and intuitive user interface - turn it on and its ready to use with default settings
- 45° degree bend for fitting
- Automatic power down and time out
- Power savings - multiple time-out selections
- Low battery indicator and automatic power-down when inactive
- Adapter fittings available
- One year warranty
- Made in U.S.A.
Specifications:
- Vacuum Reading Resolution:
- 1 micron (from 1,000 to 5 microns)
- 10 microns (from 10,000 to 1,000 microns)
- 100 microns (from 99,999 to 10,000 microns)
- Display Vacuum Measurement Accuracy:
- +/- 20% of reading (from 10,000 to 25 microns)
- Vacuum Reading Range:
- 5 to 99,999 Microns (133.3 mBar, 100 Torr, 13,333 Pa)
- Progress bar-graph from Atmosphere (ATM) to 99,999 Microns
- Proof Pressure: 450 psi
- Working Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Working Humidity: 0-95% RH (non-condensing) IP
- Class: IP-50
- Battery Life: 100+ hours continuous
- Battery: (2) AAA batteries (included)
- Size:
- Length: 6”
- Width: 1.6”
- Depth: 1.6” thick including fitting (15.3 x 4 x 4 cm)
- Weight: 0.39 lb (175 grams)
-
Warranty: One year
