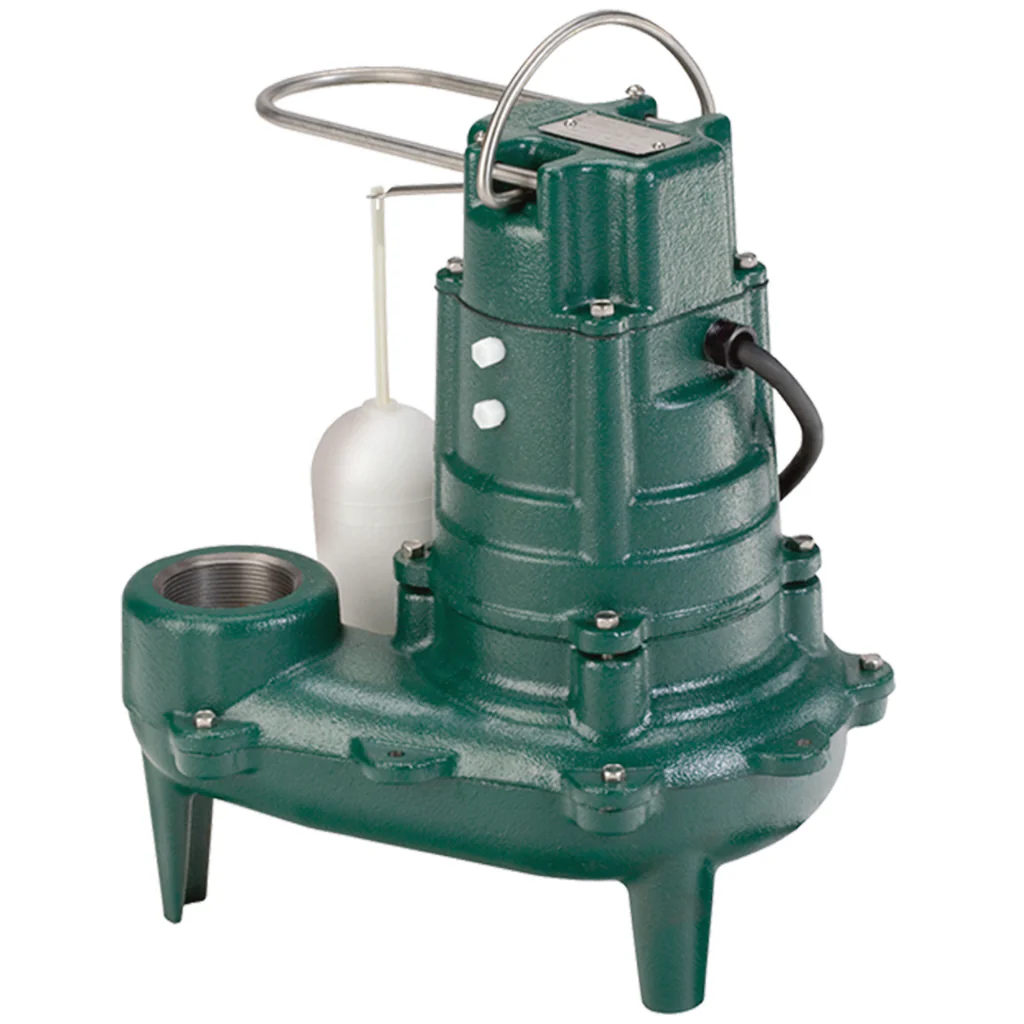

Zoeller M267 Sewage Pump 267-0001 — 1/2 HP Cast-Iron, Automatic, 2″ Solids (10′ Cord)
Zoeller M267 — Sewage Pump with 10′ Cord (Model 267-0001)
The Zoeller M267 is a rugged 1/2 HP cast-iron sewage pump engineered for residential and light-commercial ejector pits. With 2″ spherical solids handling, a non-clog vortex impeller, and automatic float control, it’s a dependable choice for basement bathrooms, septic lift stations, and multi-fixture sewage applications.
Key Features & Benefits
- 1/2 HP cast-iron motor/pump housing for durability and heat dissipation.
- 2″ solids handling with a vortex, non-clog impeller to reduce jamming.
- 2″ NPT discharge for standard sewage piping and check valves.
- 10′ power cord for flexible placement in deeper pits.
- Corrosion resistant engineered plastic vortex impeller to allow free passage of 2" spherical solids which prevents clogging and increases reliability
- Stainless steel float guard that prevents material or debris from collecting on the float ensuring proper operation every time
- Solid, buoyant, polypropylene float to eliminate the possibility of water infiltration allowing the float to remain buoyant and functional at all times
- Powder-coated epoxy finish provides corrosion-resistance and extends the life of the pump in harsh environments
- Stainless steel screws, switch arm, guard, handle and hardware to prevent rust and corrosion over the life of the pump
- 100% Factory Tested - every pump is submerged in water and tested at the factory to ensure that it performs as expected when you receive it
Best Use Cases
- Basement bathroom sewage ejection
- Septic/holding tank lift to gravity sewer
- Residential or light-commercial sewage pits with multiple fixtures
Specifications
| Product Title | M267 Sewage Pump with 10′ Cord |
| Model / SKU | 267-0001 |
| UPC | 053514017613 |
| Horsepower | 1/2 HP |
| Operation | Automatic (float switch) |
| Impeller | Vortex, non-clog |
| Solids Handling | Up to 2″ spherical |
| Housing Material | Cast Iron |
| Discharge | 2″ NPT |
| Power Cord | 10 ft |
| Applications | Sewage/effluent—residential & light commercial |
Performance — Size by the Curve
Use the pump curve in the specification sheet to select the correct GPM at Total Dynamic Head (TDH). Account for vertical lift, horizontal run, pipe size, fittings, and check-valve losses.
Common Questions
Q: Can the M267 handle sewage solids?
A: Yes. It passes up to 2″ spherical solids and is intended for sewage applications.
Q: Is this pump automatic?
A: Yes. The integral float switch turns the pump on/off automatically in the pit.
Q: What materials are used?
A: The M267 features a cast-iron housing and a vortex impeller for durability and reduced clogging.
Q: Can I use this for clear-water sump duty?
A: You can, but it’s optimized for sewage/effluent. For sump-only, a Zoeller M-Series sump pump is typically more cost-effective.
Q: How do I size the system?
A: Determine your GPM at TDH and match the curve. Follow discharge pipe size, check-valve, and venting guidance in the install manual.
