King Innovation - 95045 - AlumiConn 2-Port Al/Cu Wire Connector (1000-Pack)

King Innovation - 95045 - AlumiConn 2-Port Al/Cu Wire Connector (1000-Pack)

Looking to do a large job? Contact us today! Email [email protected]m to get a customized quote.

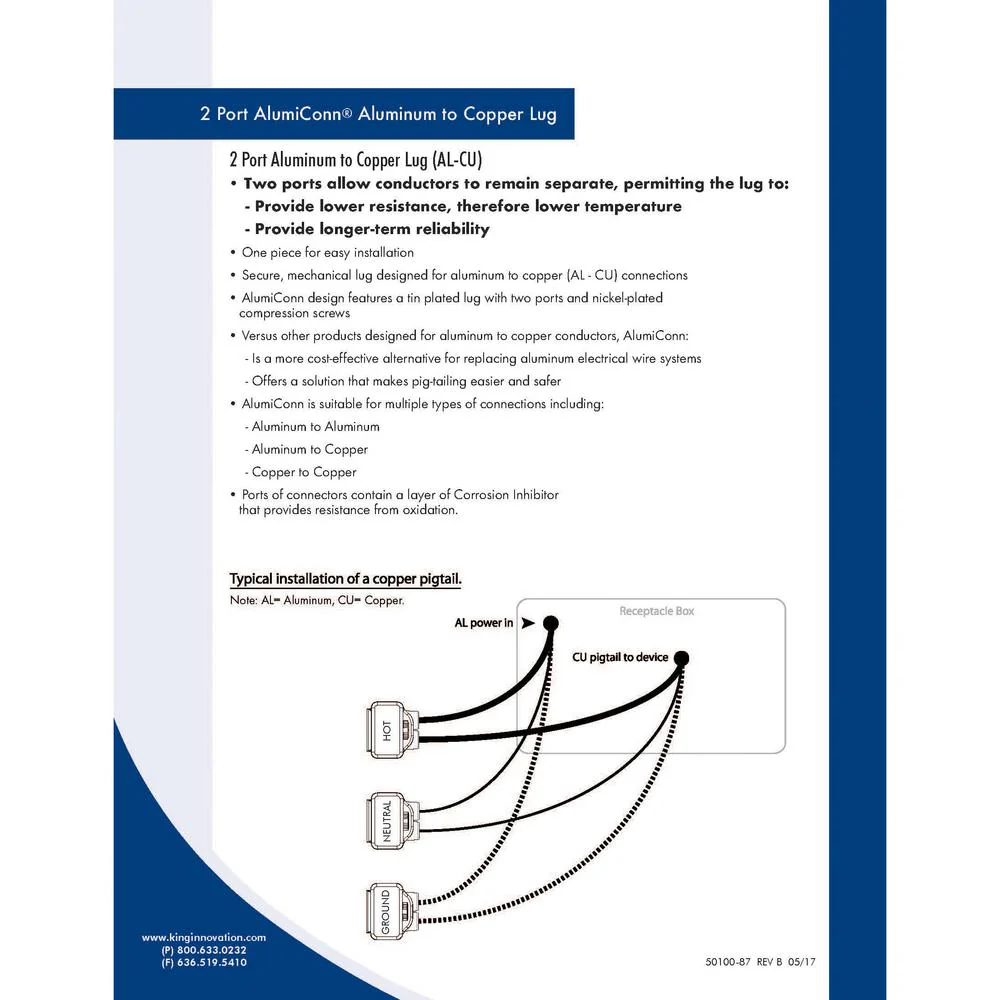

Spec Sheet Install Manual

Product Overview

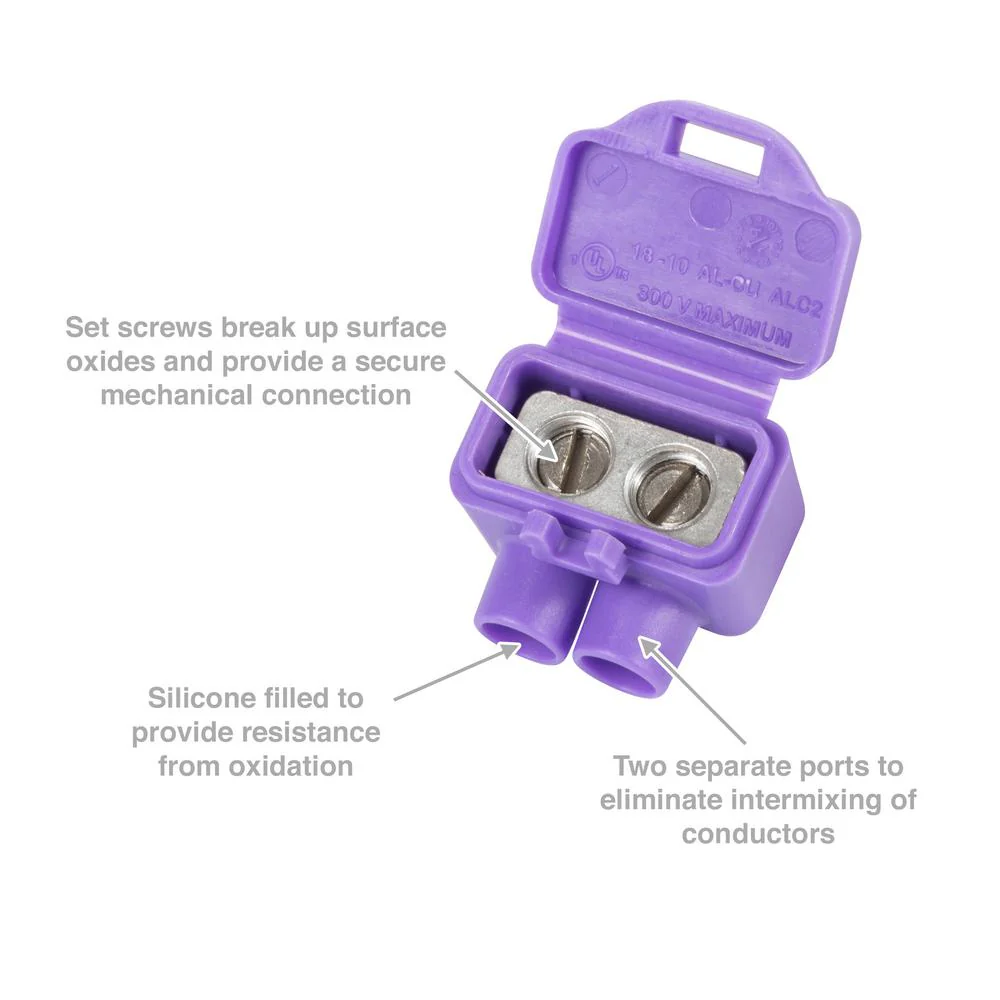

King Innovation's AlumiConn Aluminum to Copper Lug is approved by the Consumer Product Safety Commission (CPSC), UL, and numerous insurance companies as a safe method for aluminum wiring repair. AlumiConn is a lug style connector with two separate ports to eliminate intermixing of conductors. It coats aluminum wires with a thin layer of silicone sealant to provide resistance from oxidation, and uses set screws to break up surface oxides and provide a secure mechanical connection. Avoid a complete re-wire by using AlumiConn, the most cost-effective aluminum wiring repair solution available.

  • Approved by the consumer product safety committee (CPSC), UL listed, approved by insurance companies
  • Most cost-effective solution for repairing aluminum wiring systems
  • 2 ports allow conductors to remain separate, permitting the lug to run at a lower temperature and provide longer term reliability
  • Secure mechanical connection
  • Contains a layer of corrosion inhibitor that provides resistance from oxidation
  • Max Voltage 300V
  • Aluminum wire range: #12 - #10 solid AWG
  • Copper wire range: #18 - #10 solid and stranded AWG
  • UL486C Listed to meet US and Canadian standards
  • Temperature rating of insulating material: 105 degrees Celsius
  • Suitable for aluminum to aluminum, aluminum to copper and copper to copper wire splices

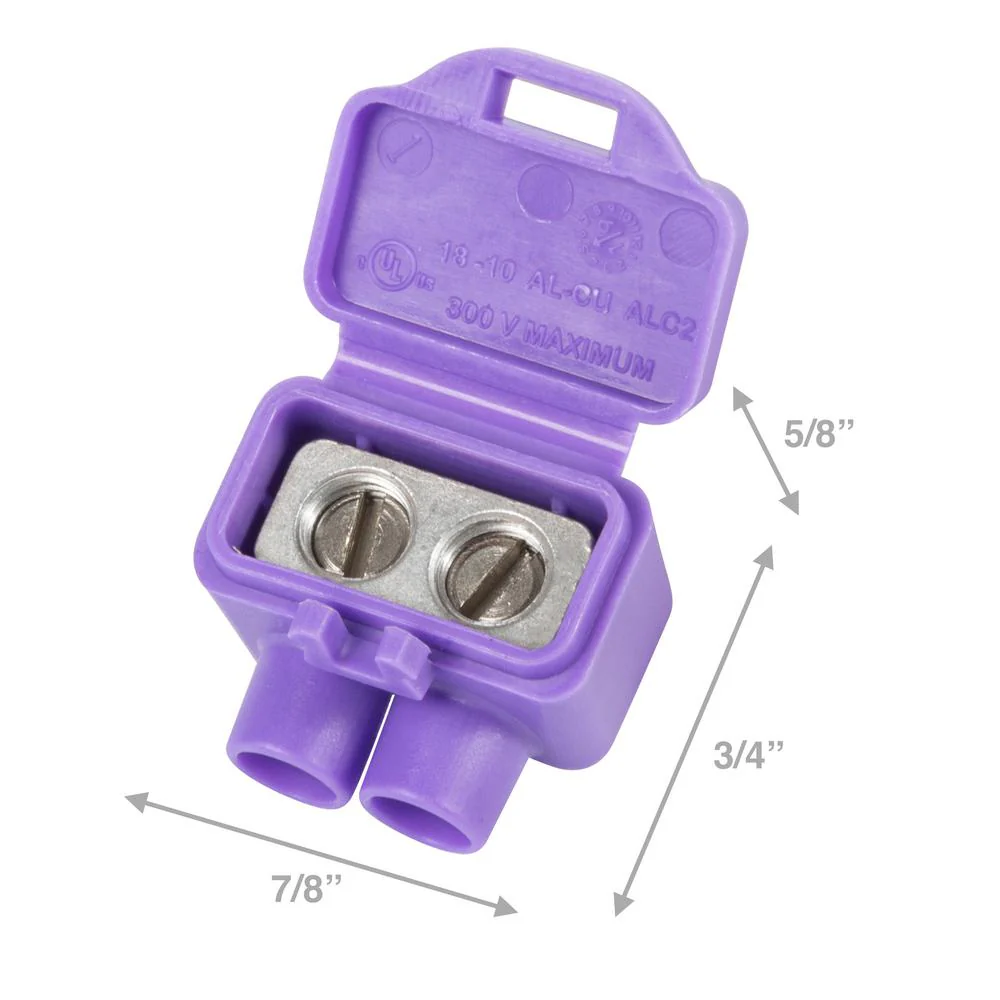

      Dimensions

      Connector Depth (in.)
      .77
      Connector Height (in.)
      .65
      Connector Width (in.)
      .91


      Details

      Color Family Purple
      Electrical Product Type Wire Connector
      Maximum Wire Capacity #10 (solid AL, solid & stranded CU)
      Minimum Wire Capacity #12 (solid AL), #18 (solid & stranded CU)


      Warranty / Certifications

      Certifications and Listings
      UL Listed
      Manufacturer Warranty
      King Innovation products are guaranteed against faulty materials or workmanship for a period of one year from date of purchase. Contact factory for full warranty information.
