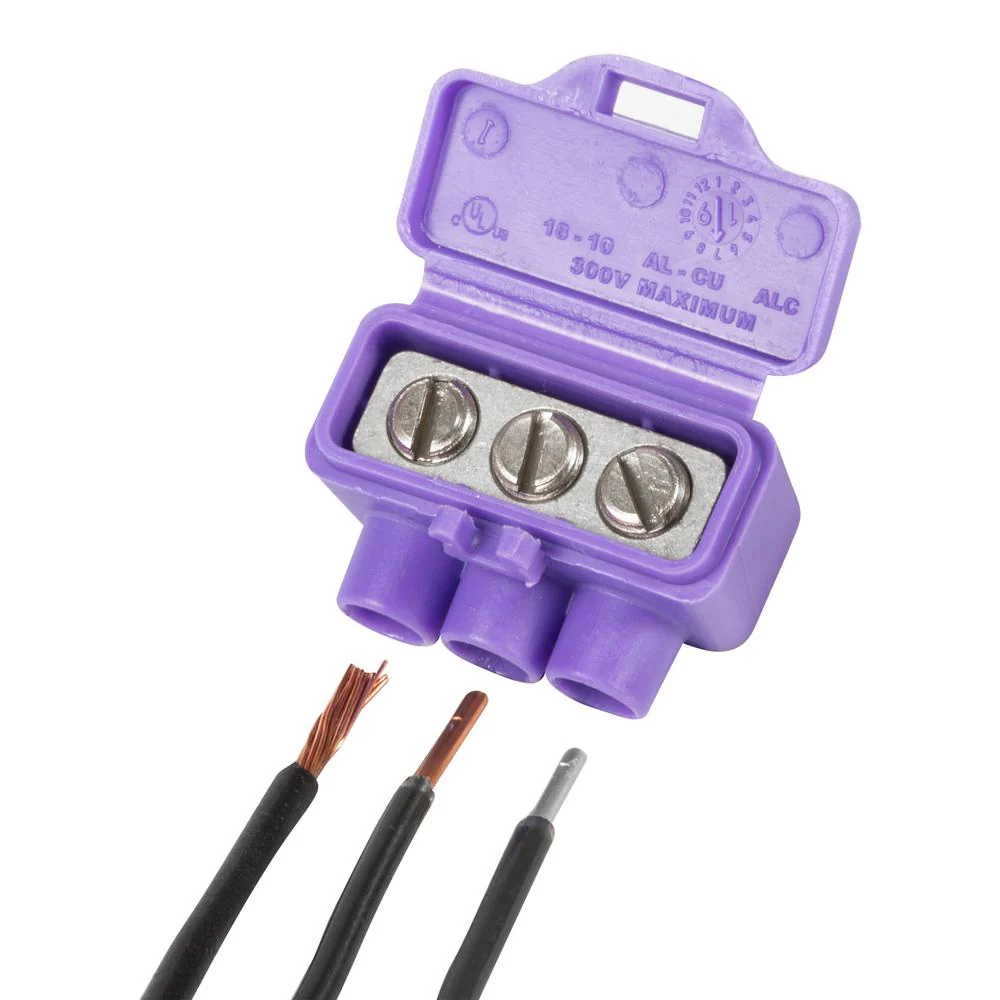

King Innovation’s AlumiConn Aluminum to Copper Lug is approved by the Consumer Product Safety Commission (CPSC), UL, and numerous insurance companies as a safe method for aluminum wiring repair. Manufactured in Missouri, AlumiConn is a lug style connector with three separate ports to eliminate intermixing of conductors. It coats aluminum wires with a thin layer of silicone sealant to provide resistance from oxidation, and uses set screws to break up surface oxides and provide a secure mechanical connection. Avoid a complete re-wire by using AlumiConn, the most cost-effective aluminum wiring repair solution available.

• Approved by the consumer product safety committee (CPSC), UL listed, approved by insurance companies
• Most cost-effective solution for repairing aluminum wiring systems

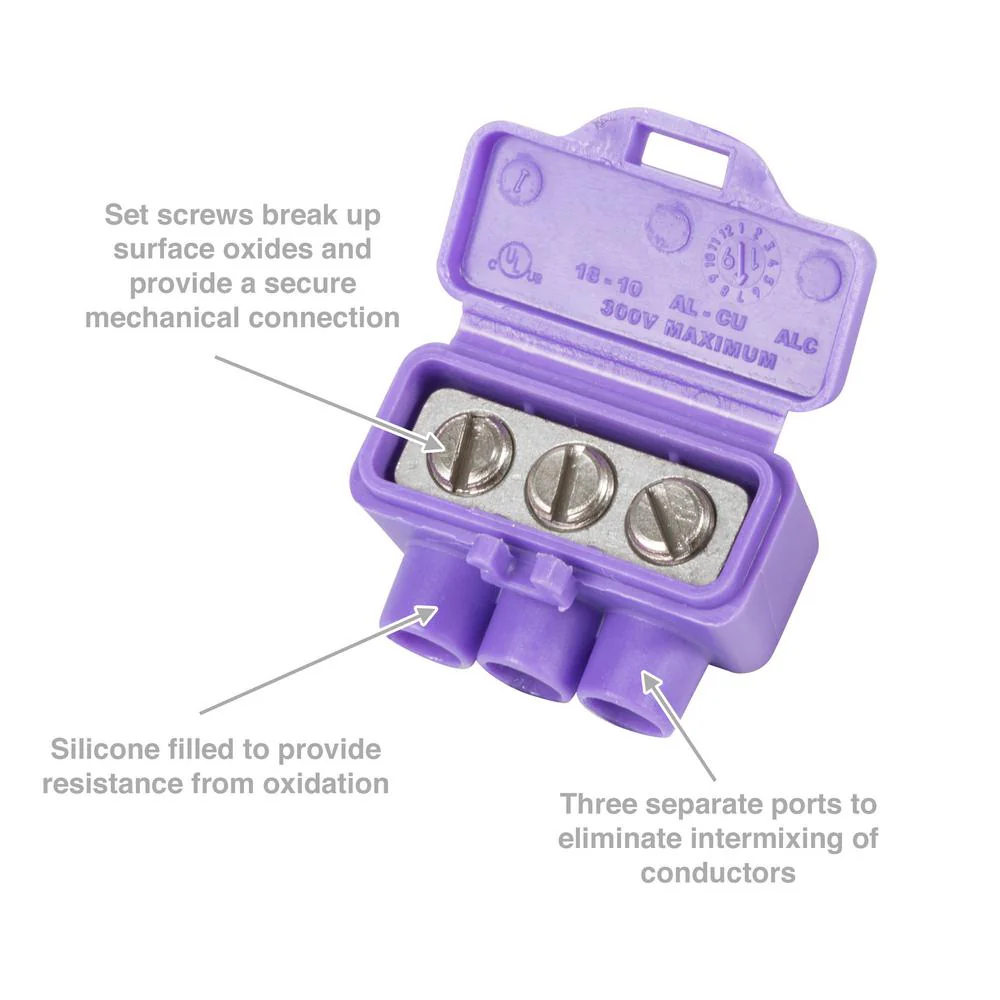

• Three ports allow conductors to remain separate, permitting the lug to run at a lower temperature and provide longer term reliability
• Secure mechanical connection
• Contains a layer of corrosion inhibitor that provides resistance from oxidation
• Max Voltage 300V
• Aluminum wire range: #12 - #10 solid AWG
• Copper wire range: #18 - #10 solid and stranded AWG
• UL486C Listed to meet US and Canadian standards
• Temperature rating of insulating material: 105 degrees Celsius
• Suitable for aluminum to aluminum, aluminum to copper and copper to copper wire splices
