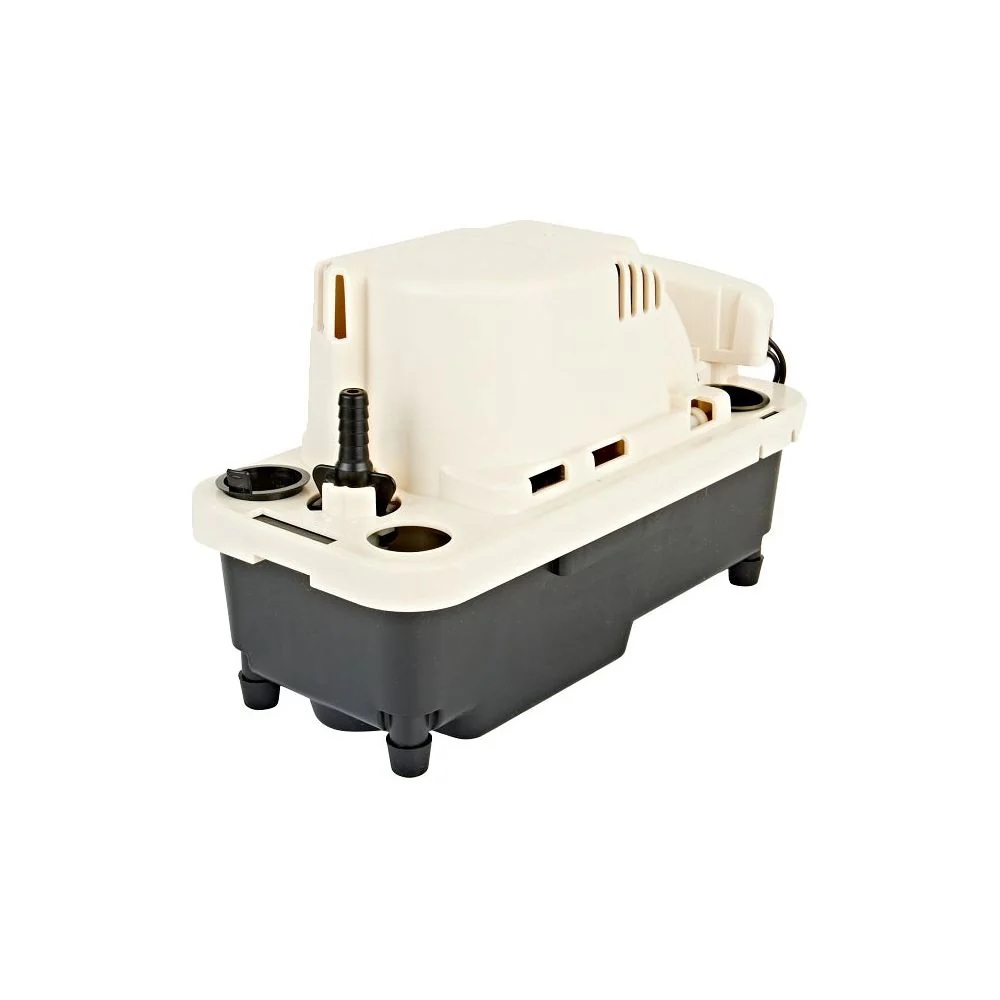

Little Giant VCMA-20ULS-PRO-230 — 554631 PRO Condensate Pump with Safety Switch (230 V)
Little Giant VCMA-20ULS-PRO-230 (554631) — 230 V PRO Series Condensate Pump with Safety Switch
The VCMA-20ULS-PRO-230 is a 230 V PRO series condensate pump with built-in safety overflow switch. Designed for installations where overflow protection is required, this pump delivers ~80 GPH at 1 ft head and includes features suited for tight plumbing environments.
Key Features & Benefits
- 1/30 HP motor with ~80 GPH / 1.33 GPM performance (230 V)
- Safety overflow switch included for protection against flooding or malfunction
- Vertical, slim design fits tight spaces
- Check valve, thermally protected motor, and quick-release discharge adapter built in
- Cover includes external manual “test/run” lever for service checks
Specifications
| Voltage | 230 V, 50/60 Hz |
| Full Load Amps | 0.57 / 0.6 A (approx) |
| Flow Rate | 80 GPH / 1.33 GPM at 1 ft head |
| Shut-off Head | 20 ft (5.7 m) |
| Max Liquid Temp | 140 °F (60 °C) |
| Discharge | ⅜″ barbed (0.38″) with check valve |
| Dimensions | ~10.2″ × 4.8″ × 6.5″ |
| Weight | 5.5 lbs |
Model Comparison
| Model / Item | Voltage | Safety Switch | Tubing Included | Flow @ 1 ft |
|---|---|---|---|---|
| VCMA-20ULST-PRO (554650) | 115 V | Yes | Yes | 84 GPH |
| VCMA-20ULST-PRO-230 (554651) | 230 V | Yes | Yes | 80 GPH |
| VCMA-20ULS-PRO-230 (554631) | 230 V | Yes | No | 80 GPH |
Common Questions
Q: Does it include tubing?
A: The 554631 version typically does not include tubing.
Q: What’s the external “test/run” lever for?
A: It allows manual activation for maintenance or testing without triggering system logic.
Q: Can it be wall-mounted?
A: Yes, these PRO models often include a quick-install wall bracket.
Designed for safety, flexibility, and performance — the VCMA-20ULS-PRO-230 is ideal for installations where overflow detection is critical.
