Rain Bird All-in-One Zone Control | XAOZ100 Drip Irrigation Valve & Filter 1in NPT
Product Details

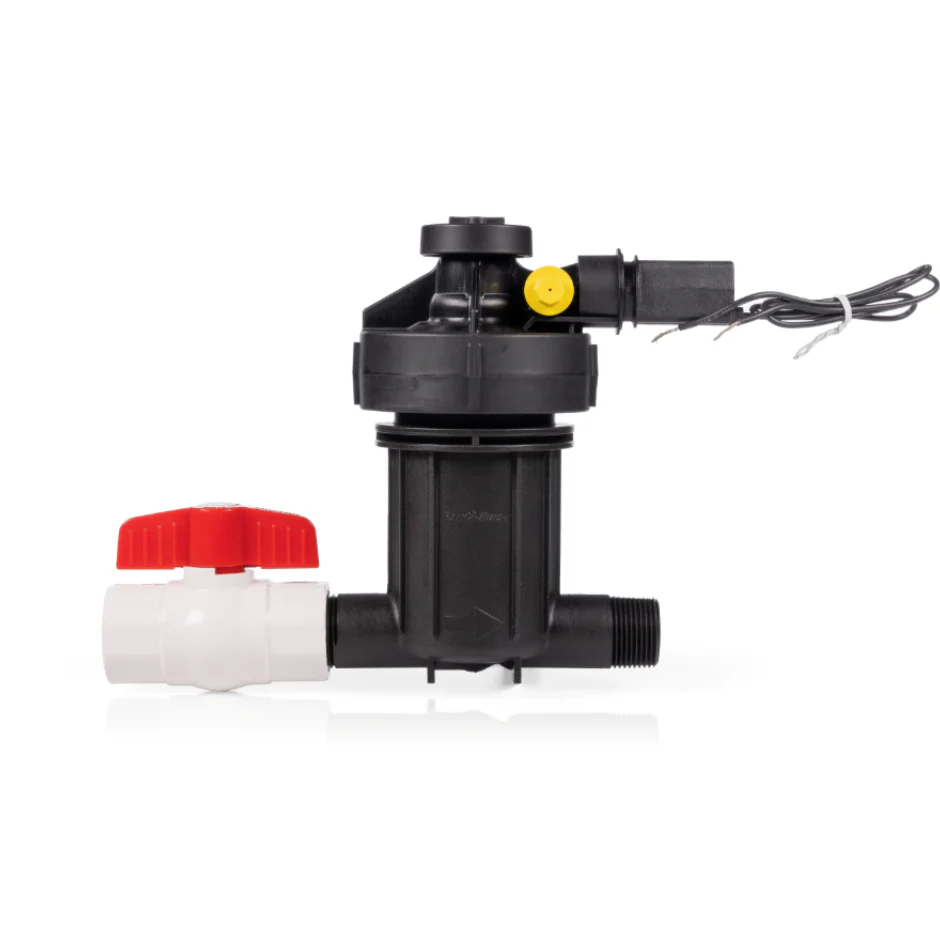

The Rain Bird XAOZ100 All-in-One Zone Control is a revolutionary solution for drip irrigation management. By integrating a low-flow valve, a 200-mesh filter, and a pressure regulator into a single, compact housing, this unit significantly reduces the footprint and installation time of a control zone. It solves the common problem of complex, leak-prone valve manifolds by minimizing the number of threaded connections, providing a streamlined and reliable point of control for any low-volume irrigation system.
Key Features:
- 3-in-1 Integration: Combines the control valve, filtration, and pressure regulation in one unit to save space and reduce labor costs.
- Reduced Leak Points: By eliminating multiple components and extra fittings, the XAOZ100 minimizes the potential for system failures and water waste.
- High-Efficiency Filtration: Includes a 200-mesh (75-micron) stainless steel filter to protect downstream emitters from clogging.
- Fixed Pressure Regulation: Features an integrated regulator that maintains a consistent 30 psi or 40 psi (model dependent) to ensure optimal drip emitter performance.
Specifications:
- Inlet/Outlet: 1" Female National Pipe Thread (FNPT)
- Flow Range: 0.2 to 20.0 Gallons Per Minute (GPM)
- Operating Pressure: 20 to 120 psi
- Regulated Pressure: 30 psi (Standard for XAOZ100)
- Filtration: 200 Mesh Stainless Steel Screen
- Electrical: 24 VAC Solenoid
Installation & Maintenance Tips:
- Flush Before Use: Always flush the supply line thoroughly before installing the zone control unit to prevent construction debris from entering the valve.
- Filter Cleaning: The filter cap can be easily unscrewed for manual cleaning. Rinse the stainless steel mesh under clean water whenever debris buildup is noticed.
- Directional Flow: Ensure the arrow on the side of the housing is pointing in the direction of the water flow to ensure the valve and regulator function correctly.
Common Uses/Applications:
- Residential Drip Zones: Ideal for flower beds, foundation plantings, and container gardens.
- Commercial Landscapes: Provides a professional, low-profile solution for median strips and office park greenery.
- Retrofit Projects: Perfect for converting existing high-pressure spray zones into efficient low-volume drip systems.
Common Questions:
- Q: Can I use this with a battery-operated controller?
- A: The XAOZ100 comes with a standard 24 VAC solenoid. To use it with a battery-powered controller, you would need to replace the solenoid with a DC latching solenoid.
- Q: Does the unit handle high-pressure water sources?
- A: Yes, it is rated to handle inlet pressures up to 120 psi, which it then regulates down to the safe operating pressure for your drip tubing.
- Q: Is the filter screen replaceable?
- A: Yes, the stainless steel screen is durable and washable, but it can also be replaced if it becomes damaged or lost.
With its compact, leak-resistant design and integrated components, the Rain Bird XAOZ100 All-in-One Zone Control is the perfect solution for anyone looking to simplify their drip irrigation installation without sacrificing performance.
