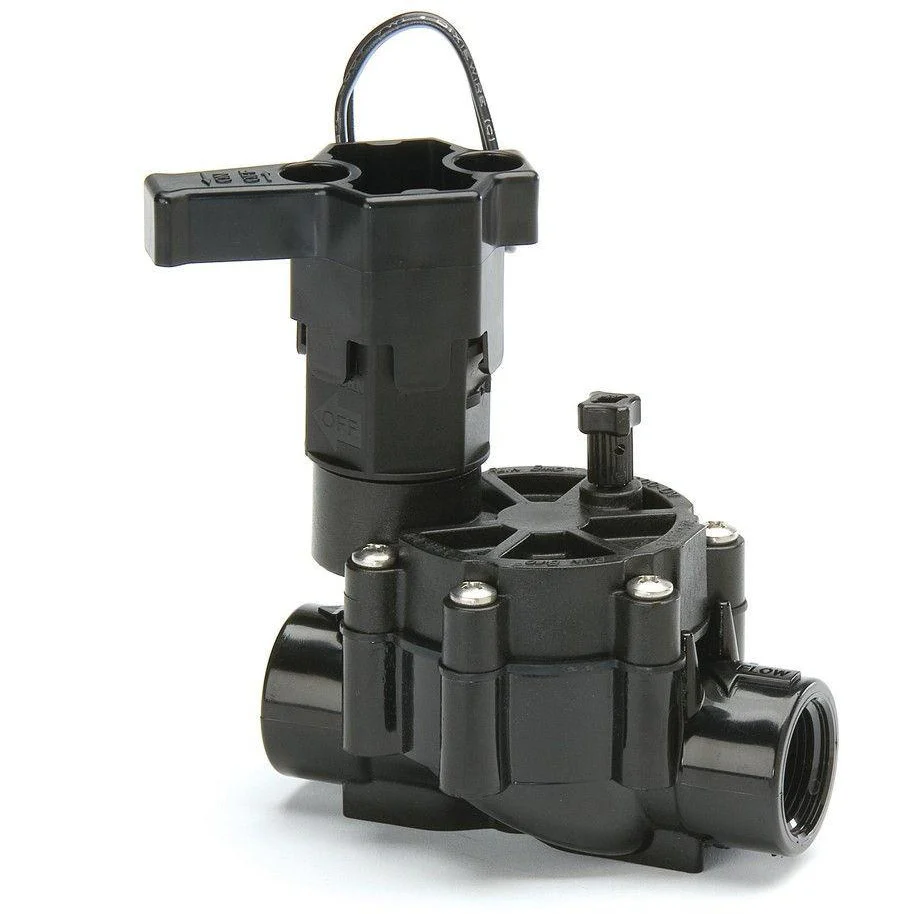

Rain Bird - DV75 - 3/4" DV Series Inline Plastic Residential Irrigation Valve

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Rain Bird - DV75 - 3/4" DV Series Inline Plastic Residential Irrigation Valve

Rain Bird - DV75 - 3/4" DV Series Inline Plastic Residential Irrigation Valve


    Spec Sheet Install Manual

    *One Solenoid Handle Per Order


    Rain Bird manufactures only the highest quality valves. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against back flow. Check your local city codes to determine what type of valves are required.
    • 3/4 in. (20/27) standard in-line configuration

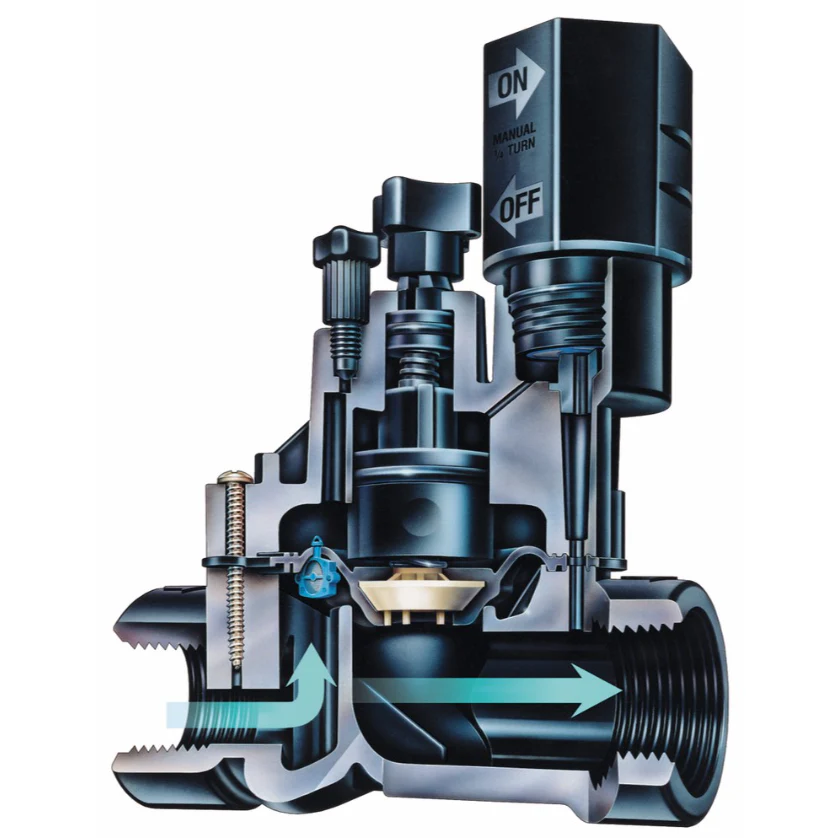

    • Double-filtered pilot-flow design for maximum reliability
    • Balanced-pressure diaphragm for long life
    • External bleed to manually flush system of dirt and debris during installation and system start-up
    • Internal bleed for spray-free manual operation
    • Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 micron) solenoid filter

    Additional features:

    • All of our valves work with any standard sprinkler timer.
    • Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring.
    • Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream.
    • 1.25 in. (3,2 cm) stainless steel phillips head screws.
    • Accepts latching solenoid for use with Rain Bird battery-operated controllers.
    • Valve Size: 3/4 in
    • Valve Type: Inline
    • Material: Plastic
    • Valve Inlet/Outlet Configuration: NPT Female x NPT Female Threaded
    • Valve Series: DV/DVF
    • Operating Temperature: Up to 110° F (43° C)
    • Dimensions:
      • Height: 4 1/2" (11,4 cm)
      • Width: 3 1/3" (8,4 cm)
      • Length: 4 3/8" (11,1 cm)
      • Electrical Specifications:
        • 24 VAC 50/60 Hz (cycles per second) solenoid power requirement:
        • 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current
        • Solenoid coil resistance: 38 Ohms
        • Flow Range: 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream.
        • Operating Pressure: 15 to 150 psi (1,0 to 10,4 bar)

        $7.25

        Original: $20.71

        -65%
        Rain Bird - DV75 - 3/4" DV Series Inline Plastic Residential Irrigation Valve—

        $20.71

        $7.25
