Spec Sheet

FEATURES & BENEFITS:

• UL Listed and 600V Rated
• Waterproof and corrosion proof
• Patented snap fit lid provides strain relief
• UV and impact resistant
• Excellent for above ground and direct bury applications
• Pre-filled with silicone that never hardens

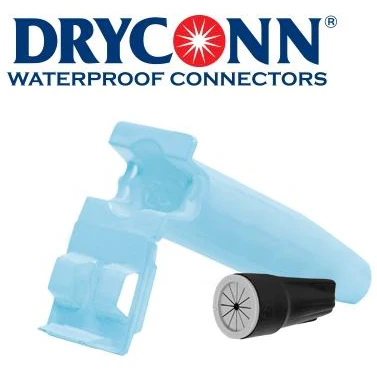

• Two part system includes DryConn Black/Gray Waterproof Connector and silicone filled tube
• Perfect for long term submersible applications

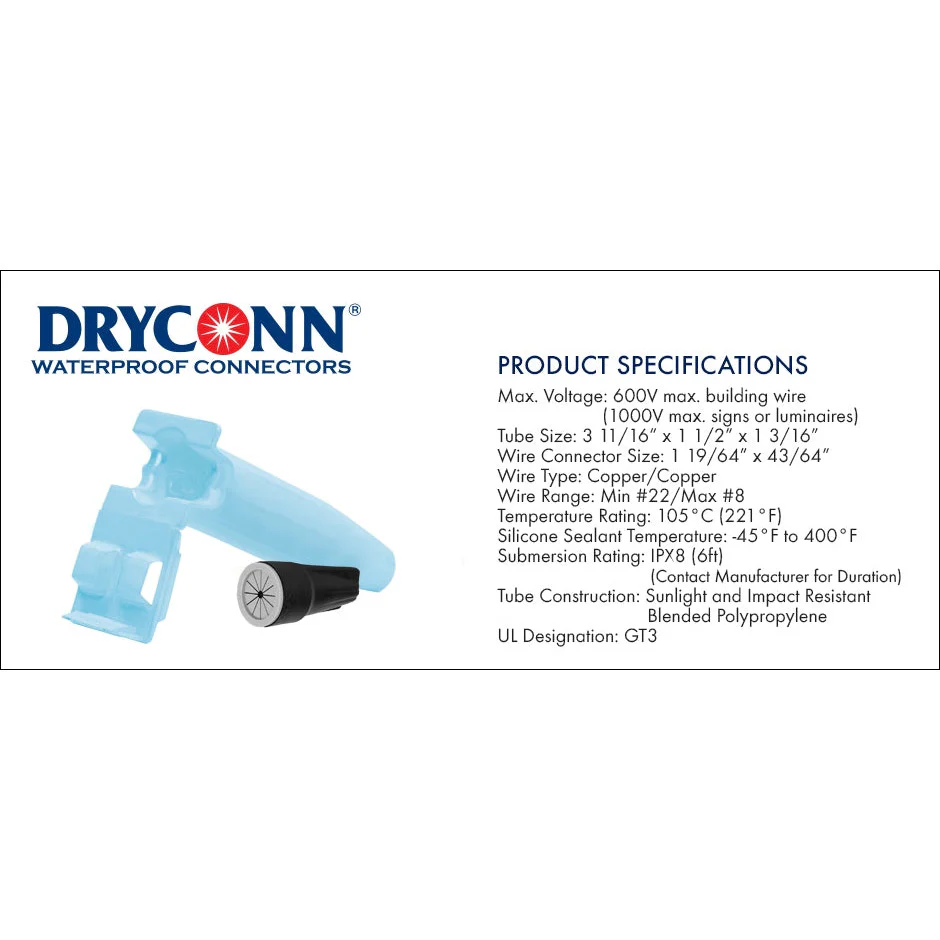

PRODUCT SPECIFICATIONS & MEASUREMENTS:

Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
Connector Size: 3 11/16" x 1 1/2" x 1 3/16"
Wire Type: Copper/Copper
Wire Range: Min #22/Max #8
Temperature Rating: -105°C (221° F)
Silicone Sealant Temperature: -45°F to 400°F
Submersion Rating: IPX8 (6ft) (Contact Manufacturer for Duration)
Tube Construction: Sunlight and Impact Resistant Blended Polypropylene
UL Designation: GT3
