Spec Sheet

FEATURES & BENEFITS:

• UL Listed 600V for dry, wet or above/below grade applications when used in an enclosure
• For use in Direct Bury applications when operating at 30V or less
• Temperature Rating: 105°C (221°F)
• Silicone Sealant: -45°F to 400°F
• Designed for tracer splices and cathodic applications

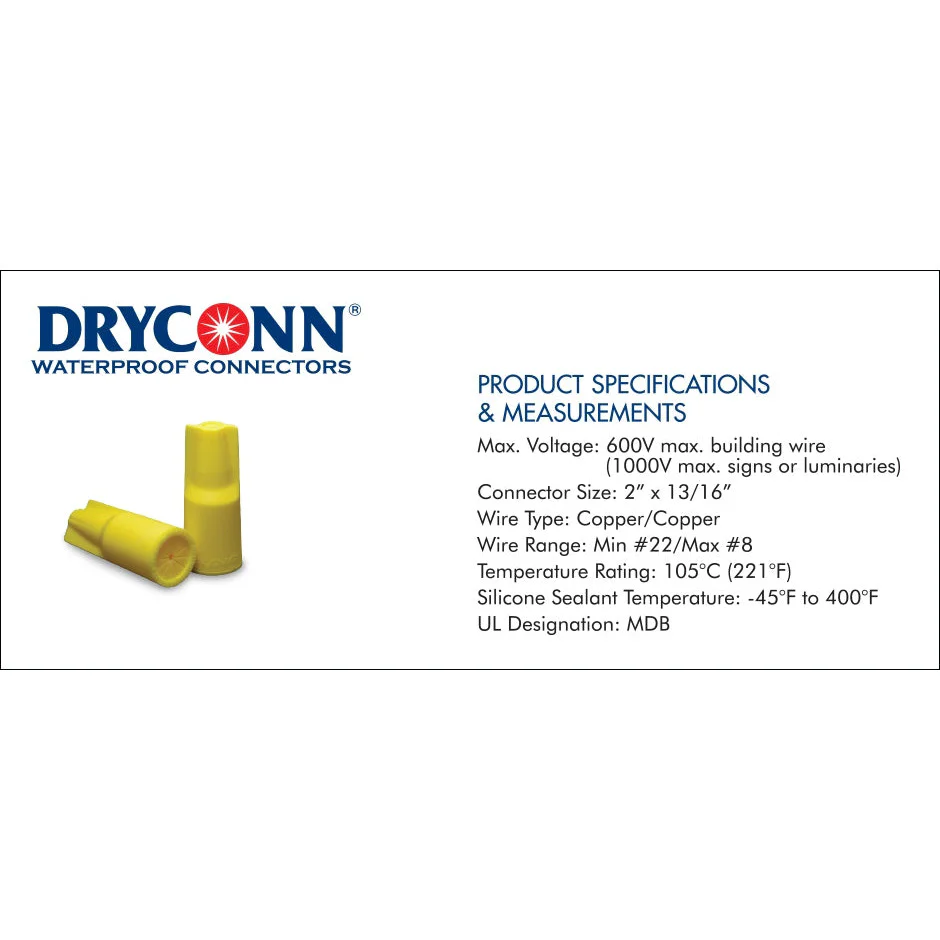

PRODUCT SPECIFICATIONS & MEASUREMENTS:

• Max. Voltage: 600V max. building wire (1000V max. signs or luminaires)

• Connector Size: 2” x 13/16”

• Wire Type: Copper/Copper

• Wire Range: Min #22/Max #8

• Temperature Rating: 105°C (221°F)

• Silicone Sealant: -45°F to 400°F

• UL Designation: MDB
