Spec Sheet

DryConn® Black Series Outdoor Irrigation Wire Connectors

FEATURES & BENEFITS:

• UL Listed 600V for dry, wet or above/below grade applications when used in an enclosure
• For use in Direct Bury applications when operating at 30V or less
• Impact resistant
• #1 in the industry
• Waterproof and corrosion proof
• One-step® installation saves time and money
• No pre-twisting required
• Pre-filled with dielectric silicone sealant that never hardens

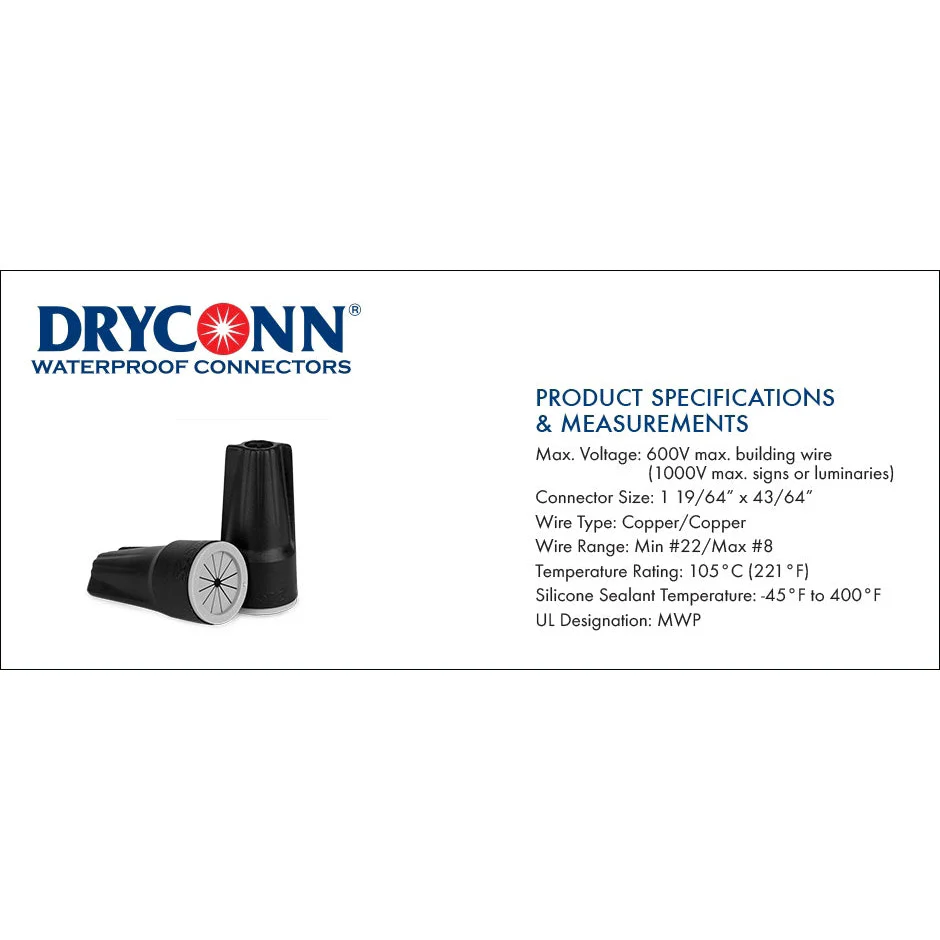

PRODUCT SPECIFICATIONS & MEASUREMENTS:

• Max. Voltage: 600V max. building wire (1000V max. signs or luminaires)

• Connector Size: 1 19/64” x 43/64”

• Wire Type: Copper/Copper

• Wire Range: Min #22/Max #8

• Temperature Rating: 105°C (221°F)

• Silicone Sealant: -45°F to 400°F

• UL Designation: MWP
