Spec Sheet

FEATURES & BENEFITS:

• Designed for low voltage tracer splices and cathodic applications up to 50V
• Install service line without cutting the main line
• Waterproof and corrosion proof
• Pre-filled with dielectric silicone sealant that never hardens
• Installs in one minute or less
• Manufacturer approved for direct bury

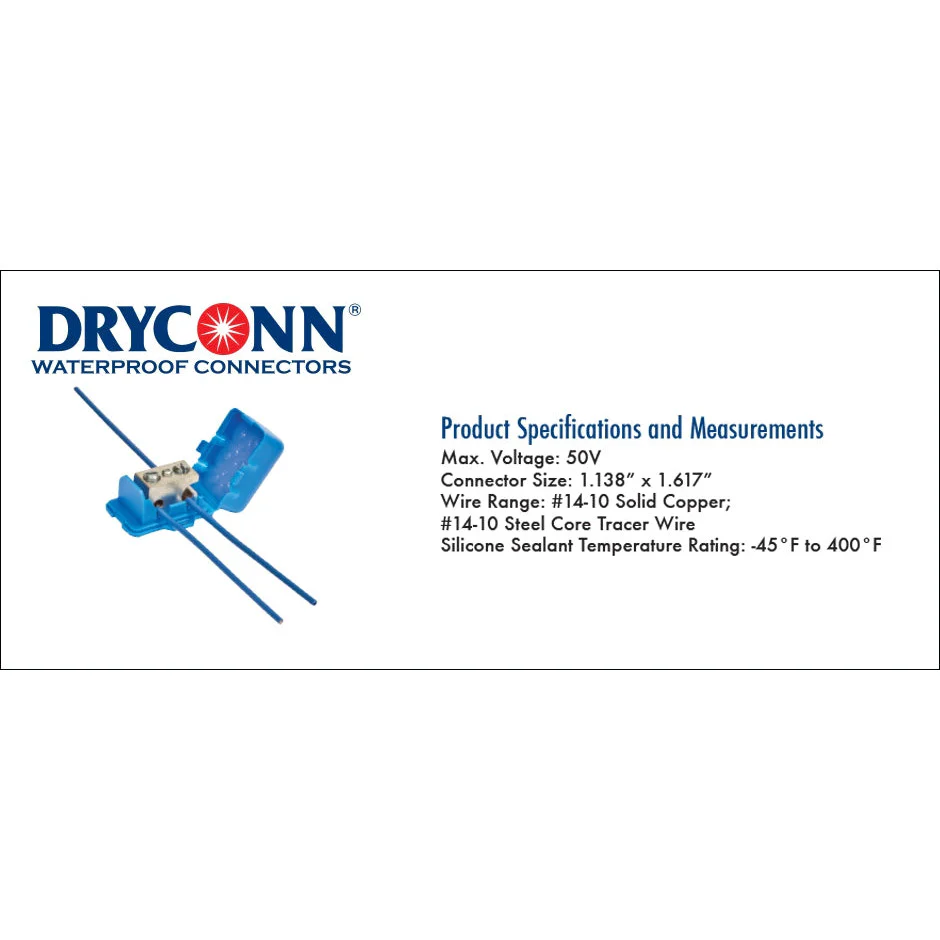

PRODUCT SPECIFICATIONS & MEASUREMENTS:

• Max. Voltage: 50V
• Connector Size: 1.138” x 1.617”

• Wire Range:

• #14-10 Solid Copper
• #14-10 Steel Core Tracer Wire
• Silicone Sealant Temperature Rating: -45°F to 400°F


CONSTRUCTION:

Lug: Tin plated high conductivity aluminum
Screws: Zinc plated steel
Housing: High impact polypropylene
Sealant: Non-hardening viscous dielectric silicone
