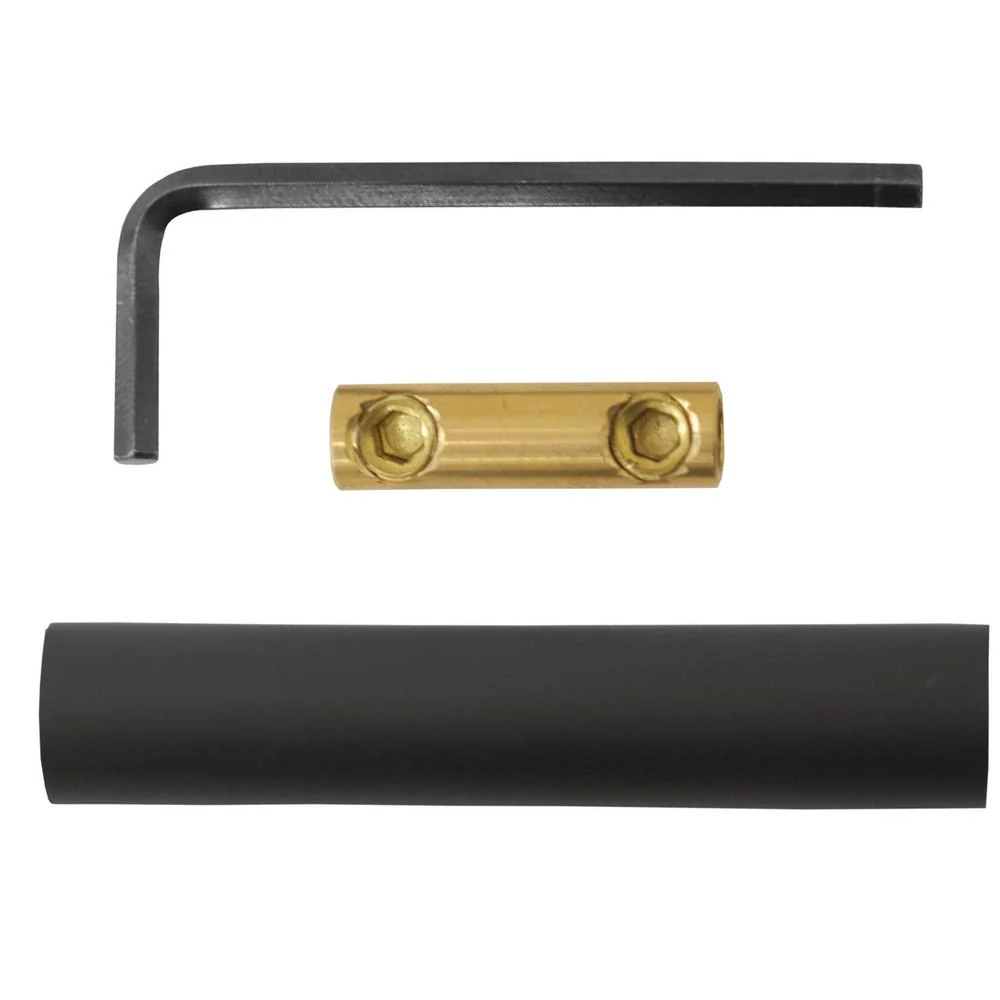

King Innovation - 90330 - ACE Connector (Medium), 50pc. Box
Spec Sheet
FEATURES & BENEFITS:
- UL Listed solid brass lug
- Fast curing heat shrink
- Weather resistant to withstand outdoor elements
- For use in low voltage landscape lighting and direct bury applications
- Rated 30V DC/15V AC
- Set screw thread pitch allows tighter securing of wires

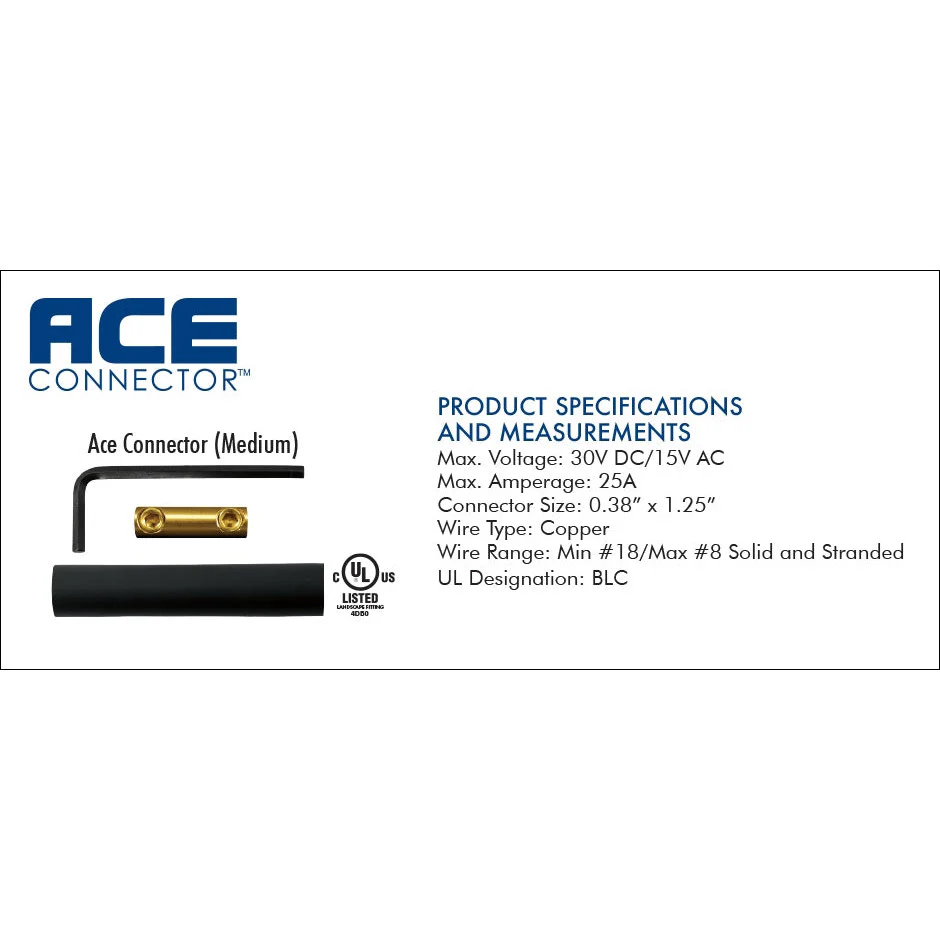

PRODUCT SPECIFICATIONS & MEASUREMENTS:
- Max. Voltage: 30V DC/15V AC
- Max Amperage: 25A
- Connector Size: 0.38" x 1.25"
- Wire Type: Copper
- Wire Range: Min #18/Max #8 Solid and Stranded
- 50 each Lug and Wraps
- 1 Wrench per Box
