Spec Sheet

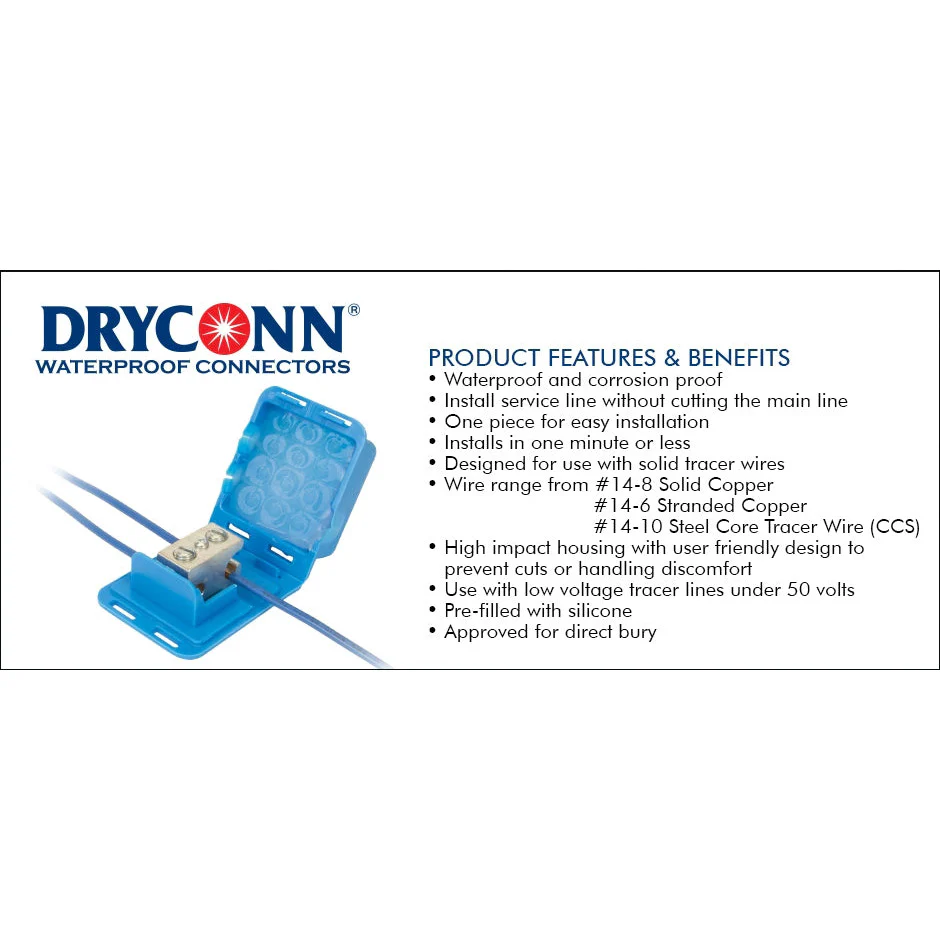

FEATURES & BENEFITS:

• Waterproof and corrosion proof
• Install service line without cutting the main line
• One piece for easy installation
• Installs in one minute or less
• Designed for use with solid tracer wires
• Wire range from #14-8 Solid AWG Solid Copper
#14-6 Stranded Copper
#14-10 Steel Core Tracer Wire (CCS)
• High impact housing with user friendly design to prevent cuts or handling discomfort
• Use with low voltage tracer lines under 50 volts
• Pre-filled with silicone
• Approved for direct bury

PRODUCT SPECIFICATIONS & MEASUREMENTS:

• Max. Voltage: 50V
• Connector Size: 1.18” x 2.04” x 2.57"

• Wire Range:

• #14-8 Solid Copper
• #14-6 Stranded Copper
• #14-10 Steel Core Tracer Wire (CCS)
• Conductor O.D. Range: .124” - .408”

• Silicone Sealant Temperature Rating: -45°F to 400°F


CONSTRUCTION:

Lug: Tin plated high conductivity aluminum
Screws: Zinc plated steel
Housing: High impact polypropylene
Sealant: Non-hardening viscous dielectric silicone
