Spec Sheet

FEATURES & BENEFITS:

• Designed to protect cathodic splices from corrosion
• Waterproof and corrosion proof
• Pre-filled with a non-toxic gel that eliminates hazmat requirements
• Re-enterable, semi-transparent, encapsulated splice allows for a visible splice examination
• Locking mechanism centers splice in box
• One piece for fast, easy installation
• Eliminates heat shrinks, primers, tapes and epoxy packs
• For making tap or branch splices on insulated cables rated up to 100V

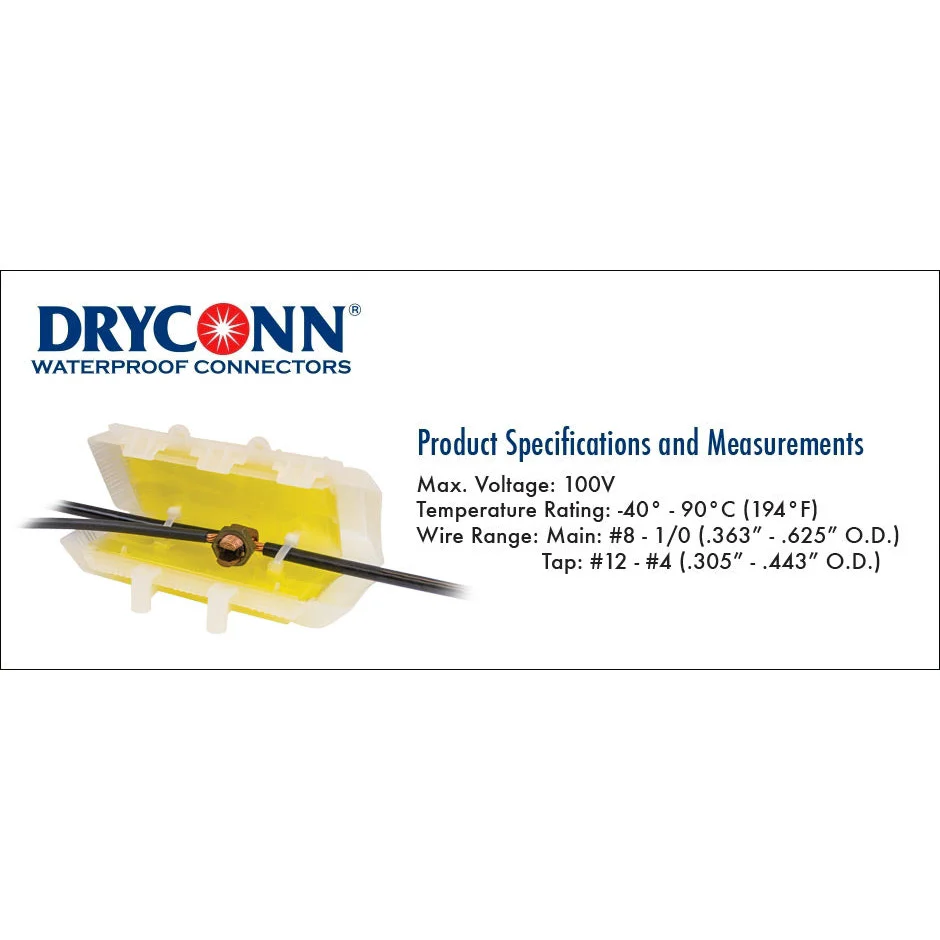

PRODUCT SPECIFICATIONS & MEASUREMENTS:

Max. Voltage: 100V
Temperature Rating: -40°C - 90°C (194°F)
Measurements: See specification sheet for complete product measurements
Wire Range:
Main: #8 - 1/0 (.363" - .625" O.D.)
Tap: #12 - #4 (.305" - .443" O.D.)
Amperage not to exceed maximum temperature of the conductor
