Spec Sheet

FEATURES & BENEFITS:

• Insulation displacement connector
• Don't have to strip wires
• Pre-filled with dielectric silicone sealant that never hardens
• Manufacturer approved for low voltage (30V) wet, damp and direct bury applications
• UV and impact resistant

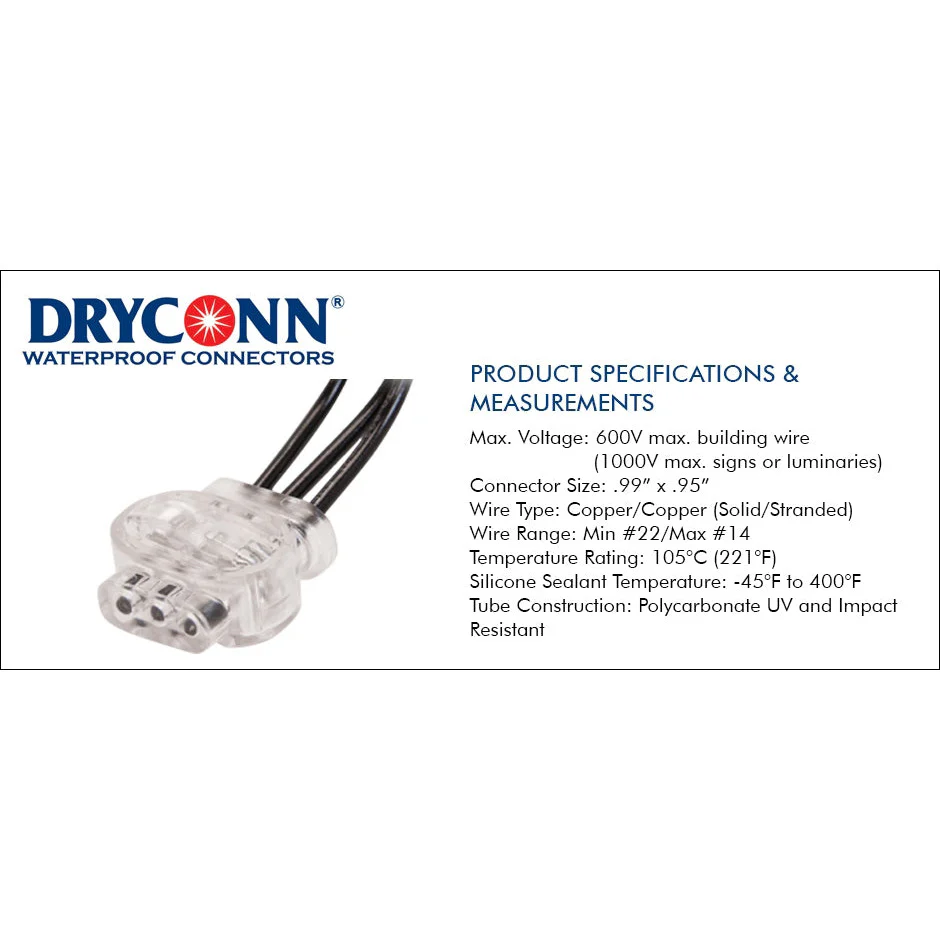

PRODUCT SPECIFICATIONS & MEASUREMENTS:

• Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)

• Connector Size: .99” x .95”

• Wire Type: Copper/Copper

• Wire Range: Min #22/Max #14*

• *Not for use with 3 #14 AWG

• Temperature Rating: 105°C (221°F)

• Silicone Sealant: -45°F to 400°F

• Tube Construction: Polycarbonate UV and Impact Resistant
